Combi WR4 Walkie Reach Stacker

Combi WR4 Walkie Reach Stacker
Combi WR4 Walkie Reach Stacker
Combi WR4
Combi WR4
Combi WR4
Combi WR4
Combi WR4

Type:long loads

Make:combilift

Power:Electric

Max Capacity:1.4 tonne

Max Height:4.2 metres

Multi-Directional – Pedestrian Reach Stacker

The Combi WR-WR4 is the first purpose built 4-way pedestrian reach stacker which combines multi-directional travel with features such as a pantograph reach, side shift and tilting fork carriage for handling long loads and pallets in very narrow aisles and is the only truck of its kind able to work in aisle widths of 2.1 m pallet to pallet.

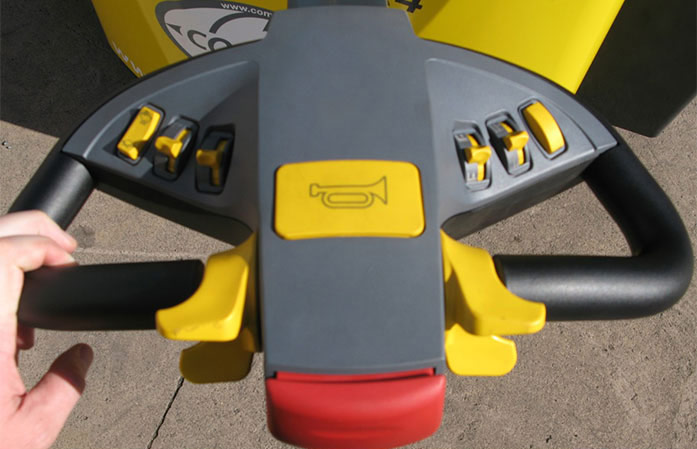

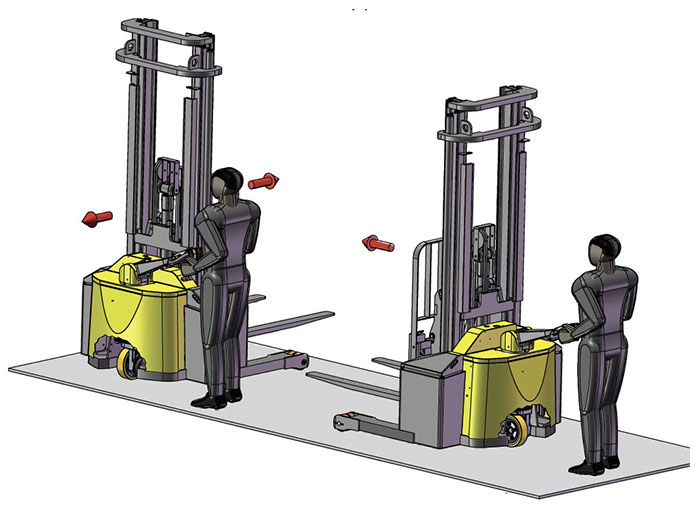

With its unique patented multi-position tiller, electronic power steering and fingertip controls it is easy and effortless to operate: push button control rotates the rear wheel parallel to the chassis and back again which reduces the need for leaning, reaching and bending and minimises general manual strain when picking and placing loads.

  • The only pedestrian reach stacker which can work in an aisle-width of 2 m pallet to pallet.
  • A 4-Way option is also available: Combi-WR4.
  • Multi Position Tiller
  • Pantograph
  • Power Steering
  • AC Motor Technology
  • 1000 mm High Load Back Rest
  • Rear Wheel Drive
  • 80/80 mm Side Shift

Type:long loads

Make:combilift

Power:Electric

Max Capacity:1.4 tonne

Max Height:4.2 metres

Specifications

WR4
Load Capacity (kg) 1,450
Load Centre (mm) 600
Lift Height (mm) 3,000 / 4,200 / 4,900
Battery Capacity 24V / 270Ah
