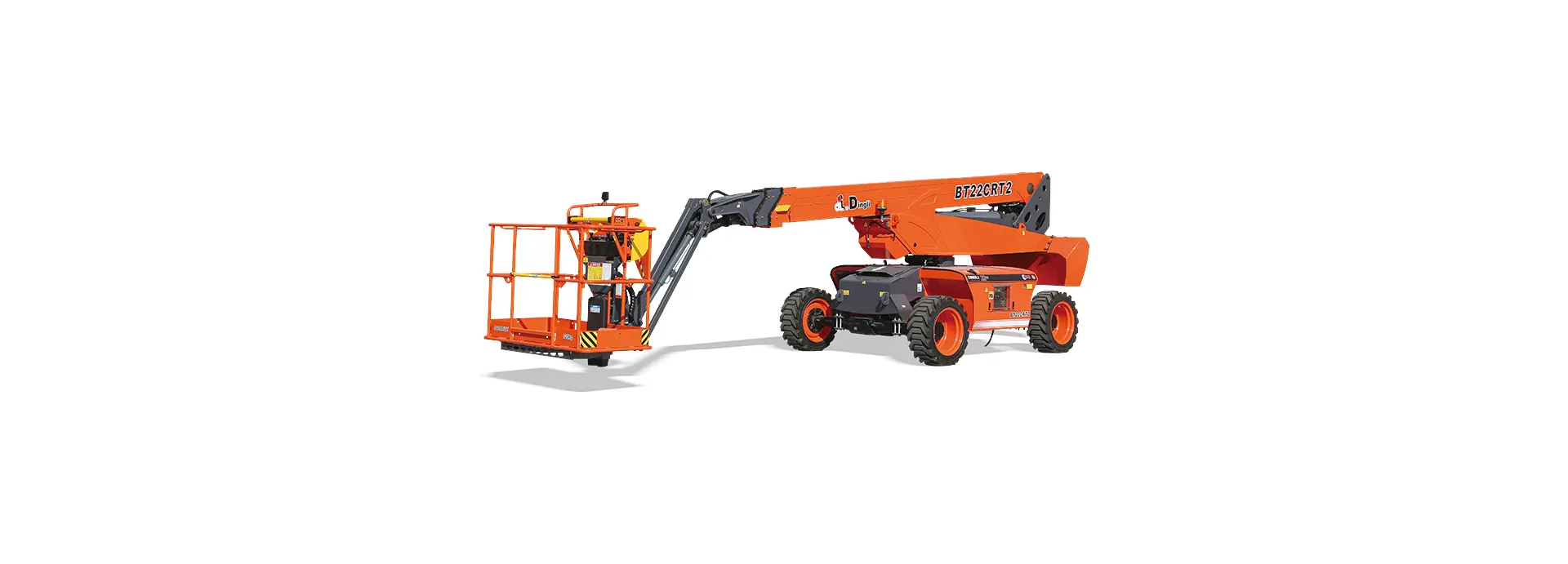

Dingli BT22CRT2 Boom Lift

Dingli BT22CRT2 Boom Lift
Dingli BT22CRT2 Boom Lift
Dingli BT22CRT2
Dingli BT22CRT2
Dingli BT22CRT2

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:20.22 metres

Dingli’s BT22CRT2 combustion engine straight boom lift has a maximum platform height of 20.22m providing a maximum working height of 22.22m with an operating range of 15.41.

The platform can accommodate up to 2 occupants with a S.W.L of 320kg.

D Series Highlights

● Developed by DINGLI’s domestic R&D Center.
● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform.
● Equipped with integrated axle, four-wheel drive & two-wheel steering.
● Component downward design with lowered center of gravity, lightweight design, energy-saving, more stable.
● Driveable at full height with large load of 320kg.
● Suitable for standard container transport.
● Equipped with 18.2kw low-power engine.

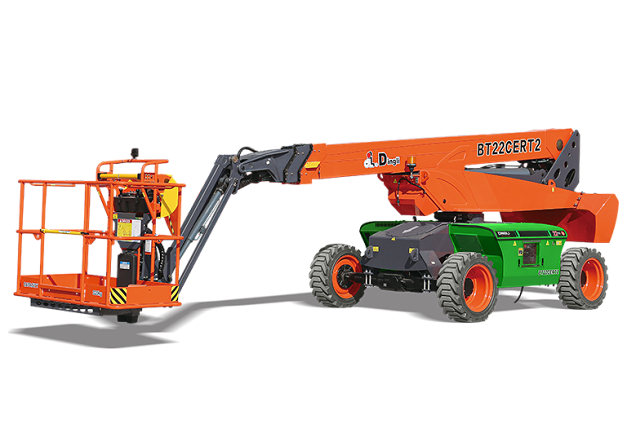

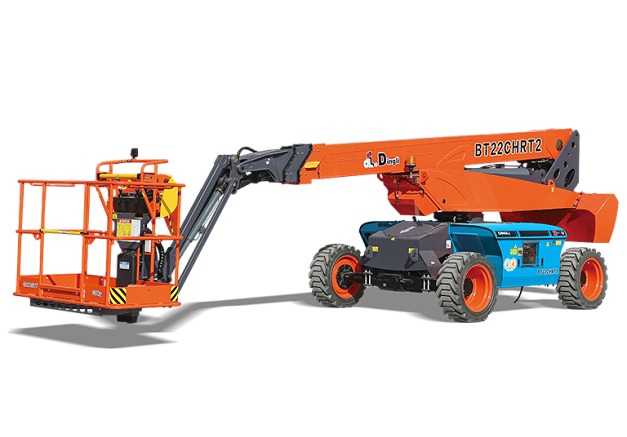

Also available in electric (BT22CERT2) and hybrid (BT22CHRT2) models.

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:20.22 metres

Specifications

BT22CRT2 Spec Sheet PDF

Product Images

Dingli BT22CRT2 Boom Lift
Dingli BT22CRT2 Boom Lift
Dingli BT22CRT2 Boom Lift
