Dingli BT28RT
Dingli BT28RT
Dingli BT28RT

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:26.6 metres

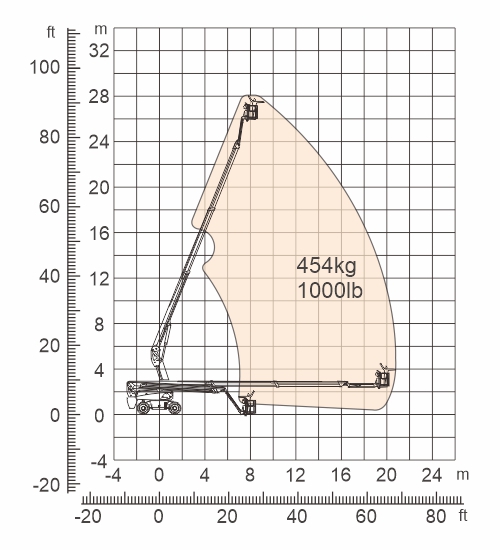

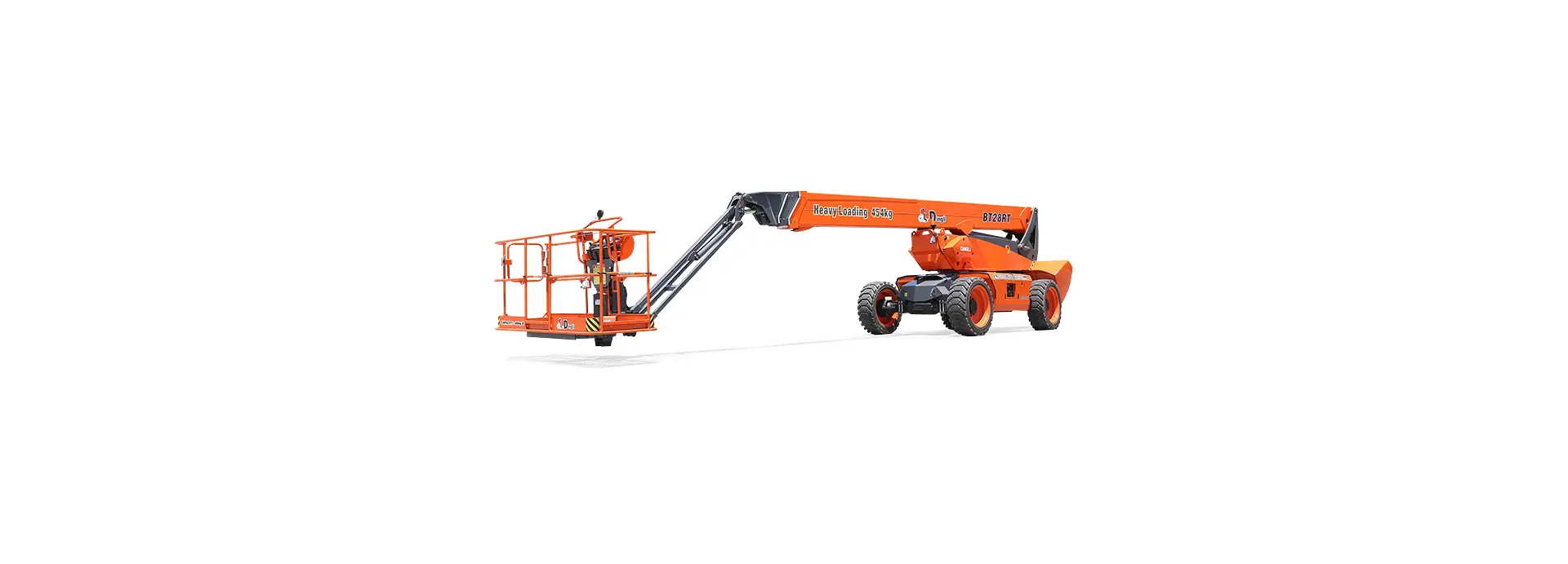

Dingli’s BT28RT combustion engine straight boom lift has a maximum platform height of 26.60m providing a maximum working height of 28.60m with an operating range of 21.90m.

The platform can accommodate up to 3 occupants with a S.W.L of 300kg / 454kg.

M Series Highlights

● Developed by MAGNI, DINGLI’s Italian R&D center.
● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform.
● Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance.
● Component downward design with lowered center of gravity.
● Suitable for standard container transport.
● Equipped with 55.4kw high power engine, gradeability up to 45%.

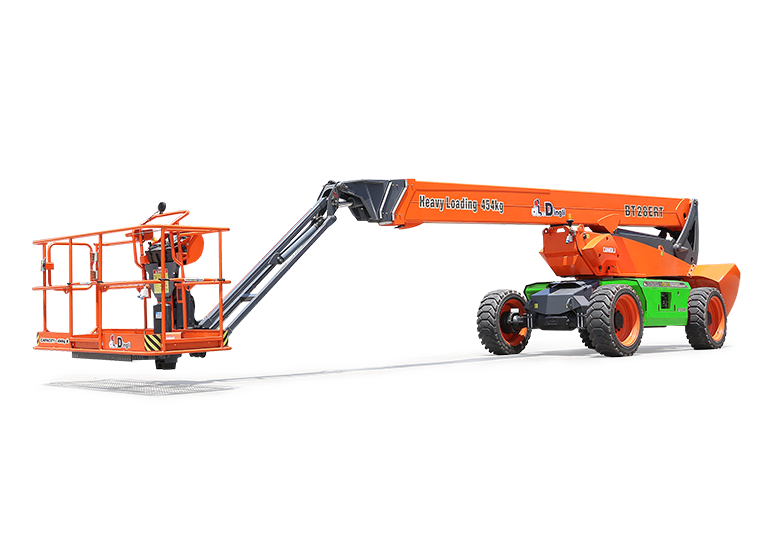

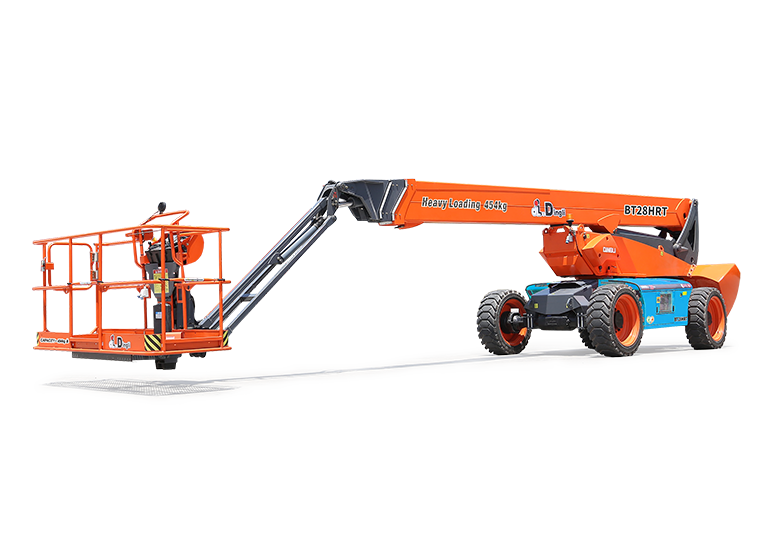

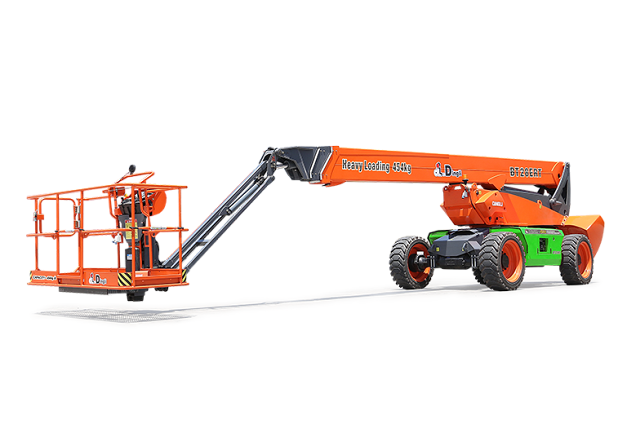

Also available in electric (BT28ERT) and hybrid (BT28HRT) models.

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:26.6 metres

Specifications

BT28RT Spec Sheet
