Dingli Summit SC1018-AWD Scissor Lift

Dingli Summit SC1018-AWD Scissor Lift
Dingli Summit SC1018-AWD Scissor Lift
Dingli Summit SC1018-AWD

Type:access equipment

Make:dingli

Power:Internal Combustion

Max Height:10 metres

Rough Terrain Scissor Lift

The Summit SC1018-AWD Rough-Terrain Scissor Lift is an extremely versatile lifter that provides a large platform with a massive 454 kg load limit up to heights of 12 m.

With AC power reaching up to the platform and automatic hydraulic levelling, the Summit SC1018-AWD platform reaches up to 10 m in height, providing up to a 12 m reach. Jam packed full of features, it comes with a Kubota engine, foam filled tyres and a selection of optional extras to ensure your SC1018-AWD Rough-Terrain Scissor Lift is tailored to your needs.

Standard Features Proportional controls Self-lock gate on platform Drivable at full height Non-marking tyres 4WD Automatic brakes Swing out engine tray Safety electric pump Emergency stop button Cylinder holding valve Onboard diagnostic system Tilt sensor with alarm Anti-restart engine protection Motion alarms Horn Hour meter Safety brackets Folding guardrails Extendable platform Charger protection European III emission engine Flashing beacon Automatic levelling hydraulic outriggers AC power to the platform Optional Extras Overload sensor with alarm Platform work lights Airline to the platform Hydraulic generator Hydraulic oil cooler.

Type:access equipment

Make:dingli

Power:Internal Combustion

Max Height:10 metres

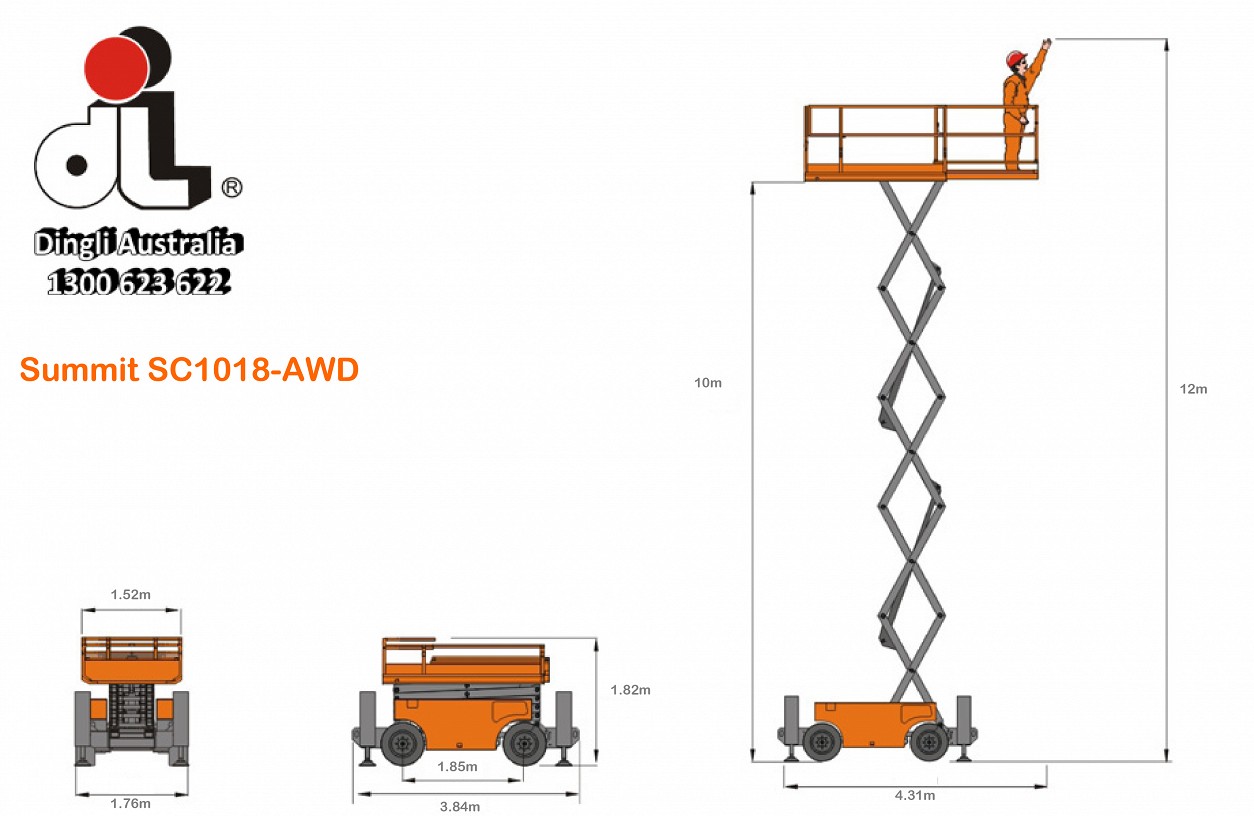

Specifications

Type: Rough Terrain Scissor Lift
Model: SC1018-AWD
S.W.L: 454kg
Working Height: 12.00m
Platform Floor Height: 10.00m
Platform Size: 2.59m x 1.82m
Rotation: 2.59m x 1.82m
Overall Length: 3.84m
Overall Height: 2.59m
Overall Width: 1.76m
Weight: 4300kg

Product Images

Dingli Summit SC1018-AWD Scissor Lift
