Hyster H36.00-48.00XM(S)-12
Hyster H36.00-48.00XM(S)-12
Hyster H36.00-48.00XM(S)-12

Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:48 tonne

Compact high capacity forklifts, now with new even shorter wheelbase models on offer, the H36.00-48.00XM(S)-12 series is available with a wide range of standard and optional features. The forklift provides fast handling, reliable proven components, high productivity and represents an excellent return on investment to ensure that you are able to identify the right solution for your application needs.

The series is available with a modern clean-running Diesel engine, standard oil-immersed brakes, robust drive-axle and advanced auto-shift transmission, which all combine to maintain maximum productivity and reliability during operation in demanding applications.

  • Engine and transmission protection systems as well as oil-immersed brakes are standard to ensure reliable operation.

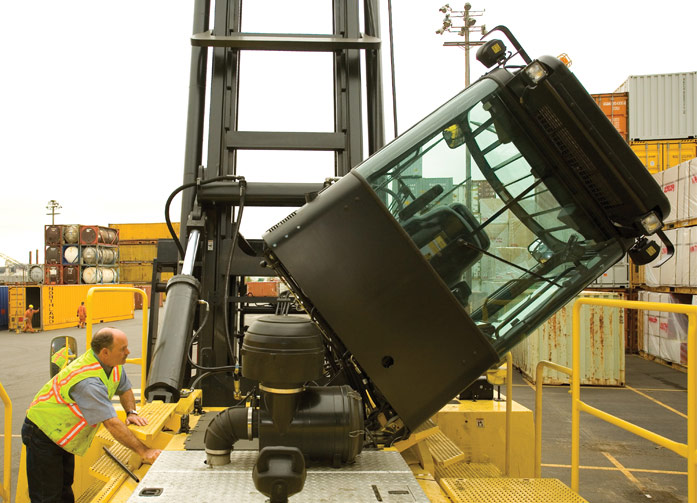

  • Hyster “Vista” cab, offers an outstanding range of standard ergonomic features, plus excellent all-round visibility, to ensure ease of operation.

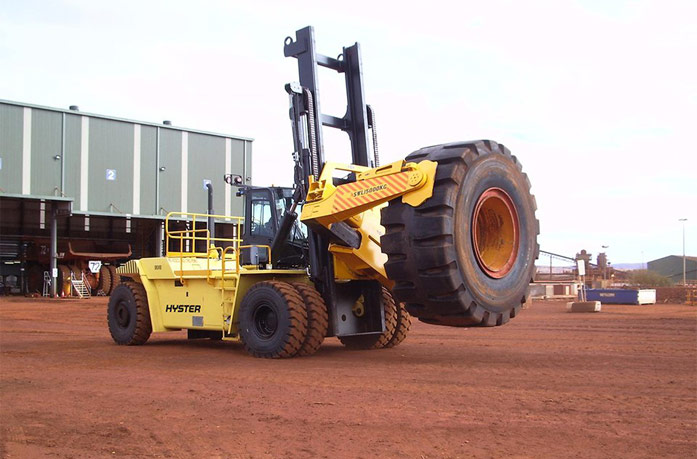

  • A range of different carriage, fork and front-end attachments (including container spreaders) is available to best meet application requirements.
  • New short wheelbase models are ideal for applications where operating space is restricted.
  • An engine shut-down function and easy service access minimise service time and cost.

Type:high capacity

Make:hyster

Power:Internal Combustion

Max Capacity:48 tonne

Specifications

H36.00XMS-12 H40.00XMS-12 H40.00XM-12 H44.00XMS-12 H44.00XM-12 H48.00XMS-12 H48.00XM-12
Load Capacity (kg) 36,280 40,820 40,000 44,000 44,000 48,070 48,000
Load Centre (mm) 1,200 1,200 1,200 1,200 1,200 1,200 1,200
Lift Height (mm) 9,890 9,890 9,890 9,890 9,890 9,890 9,890
Engine Type Cummins QSM 11 Cummins QSM 11 Cummins QSM 11 Cummins QSM 11 Cummins QSM 11 Cummins QSM 11 Cummins QSM 11
Transmission SOH TE27 4-sp autoshiftSOH TE27 4-sp autoshiftSOH TE27 4-sp autoshiftSOH TE27 4-sp autoshiftSOH TE27 4-sp autoshiftSOH TE27 4-sp autoshiftSOH TE27 4-sp autoshift

Product Images

Hyster H36.00-48.00XM(S)-12 High Capacity Forklifts
Hyster H36.00-48.00XM(S)-12 High Capacity Forklifts
Hyster H36.00-48.00XM(S)-12 High Capacity Forklifts
