Designing your own Hyster H2.0-3.5A
No customer is the same, that’s why we are customising and optimising the truck you need according to your duty cycle, environment, and tasks.
The Hyster A Series is designed using A+ Logic, with a fully integrated set of scalable and adjustable features that allows you to easily fine-tune the right solution for your application in your specific industry.
Operator Centric Design
Ergonomic workspace boosts driver comfort & productivity for operators over long shifts.
Safety Features that Boost Productivity
Operator assistance features support operators and pedestrian awareness.
Low Total Cost of Ownership
Reliability & durable parts cut downtime & maintenance costs. Customisation improves affordability.

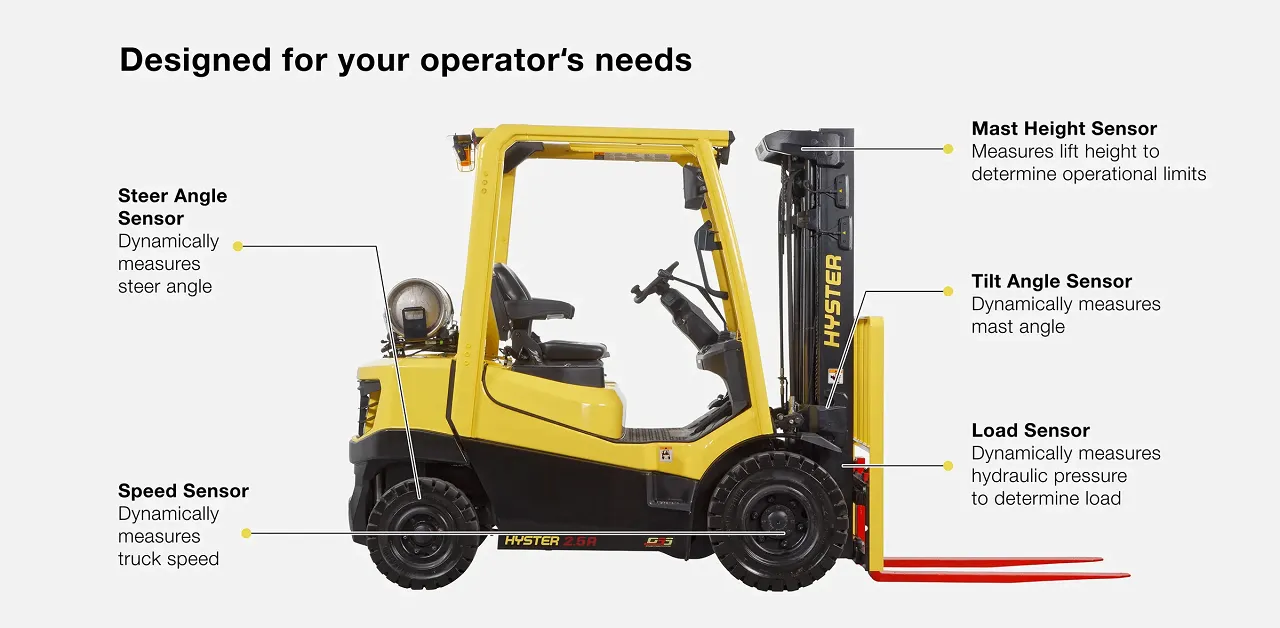

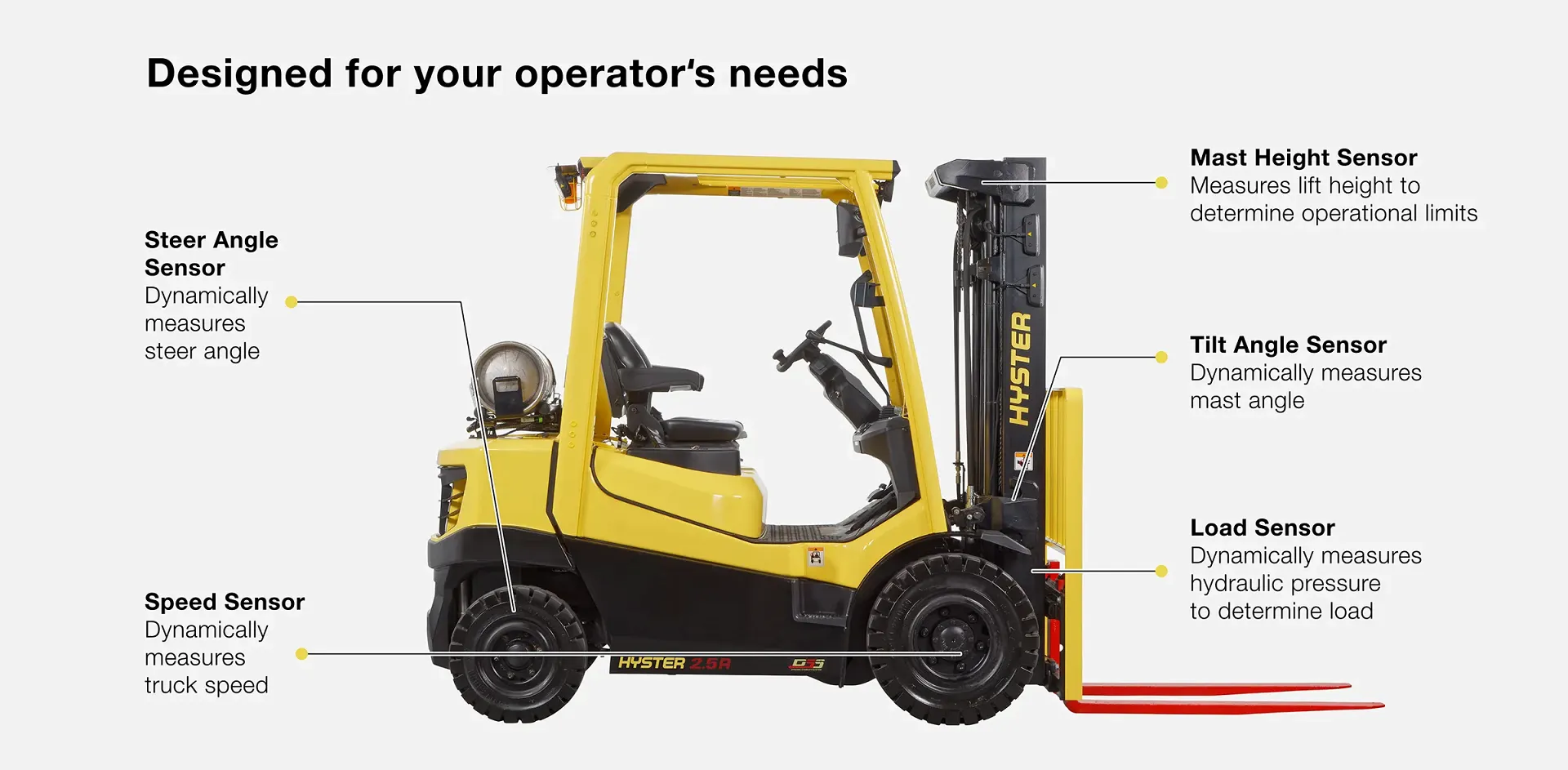

Dynamic Stability System (DSS)
Forklift safety is critical in the materials handling industry. The innovative DSS system increases confidence and promotes
safe operating practices for forklift operators. Explore each aspect below to learn more.

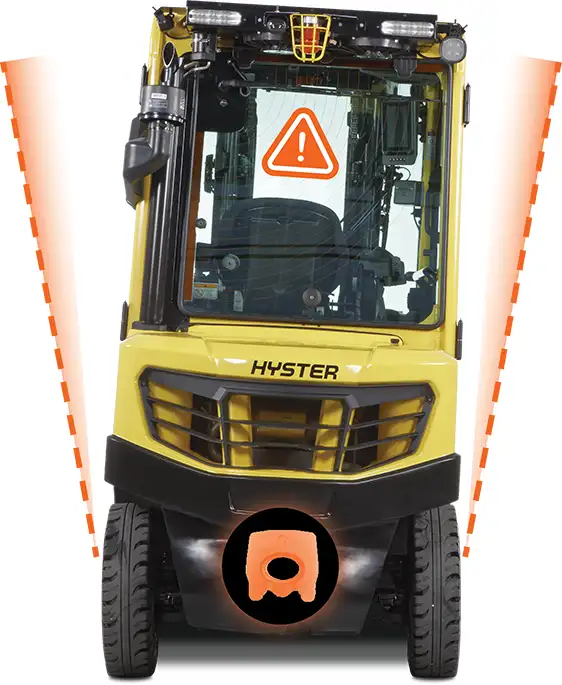

Reduces lift truck lean in turns, helping to improve lateral stability. The innovative steer axle design allows for superior travel over uneven surfaces. The system is 100% maintenance free, with no controller, sensors or wiring.

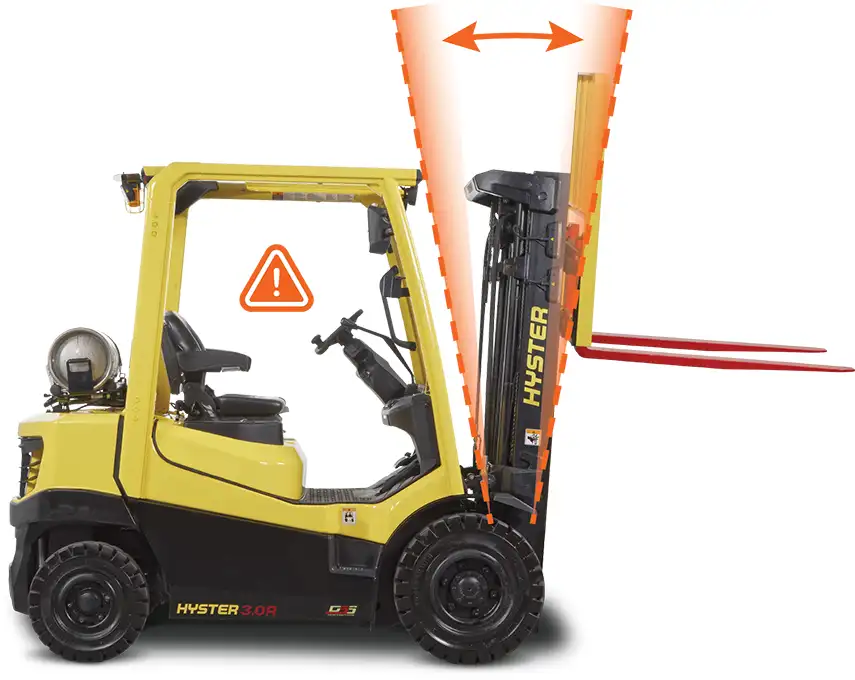

Limits tilt speed and forward tilt range when the carriage is raised above the height threshold while carrying a load. Operator will receive a visual indicator on the lift truck display and an audible alert.

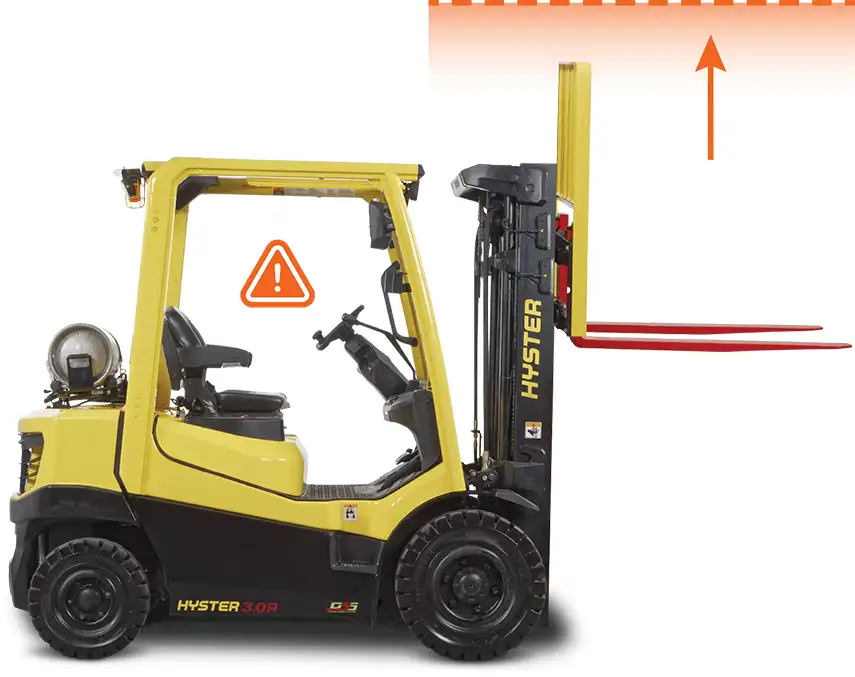

Limits truck speed when the carriage is raised above the height threshold. Operator will receive a visual indicator on the truck display and an audible alert.

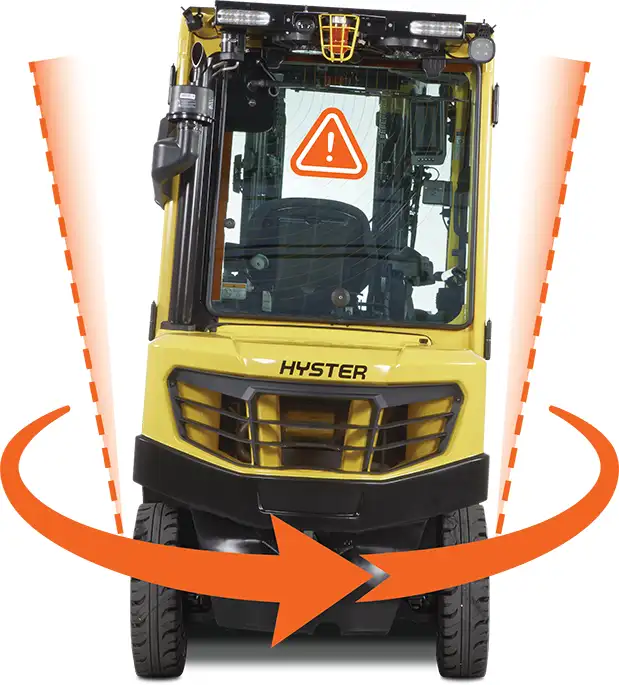

Dynamically limits speed when driving around corners, based on how tightly the truck is turning. Operator will receive a visual indicator on the forklift display and an audible alert. Dynamically limits speed when driving around corners, based on how tightly the truck is turning. Operator will receive a visual indicator on the forklift display and an audible alert.
Hyster A Series allows you to build a truck specifically for your operators, your application and your business.
Available in the 2,000 – 3,500 kg capacity range, the Series A can be configured to match your unique requirements.
Colour touchscreen display

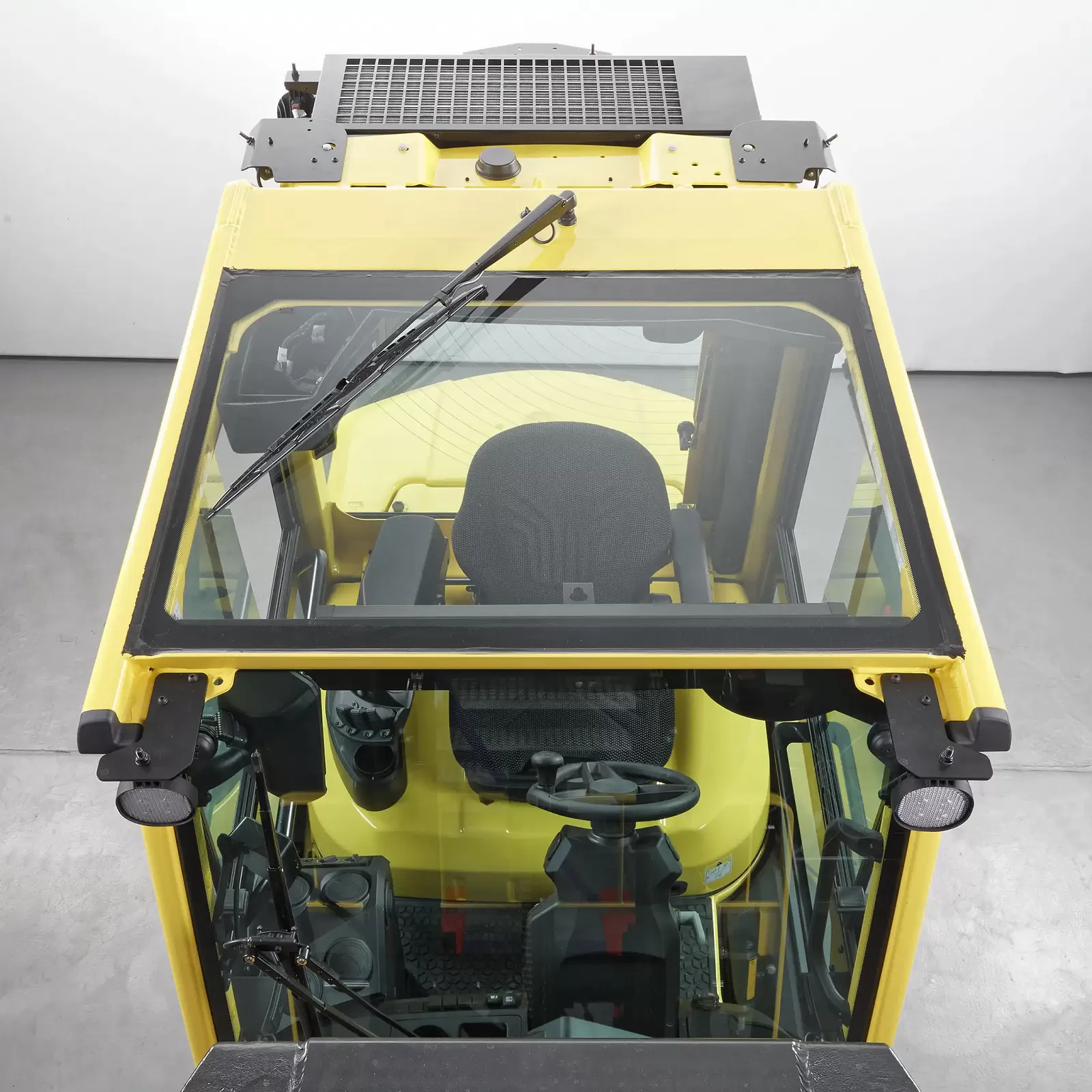

Clear view overhead guard

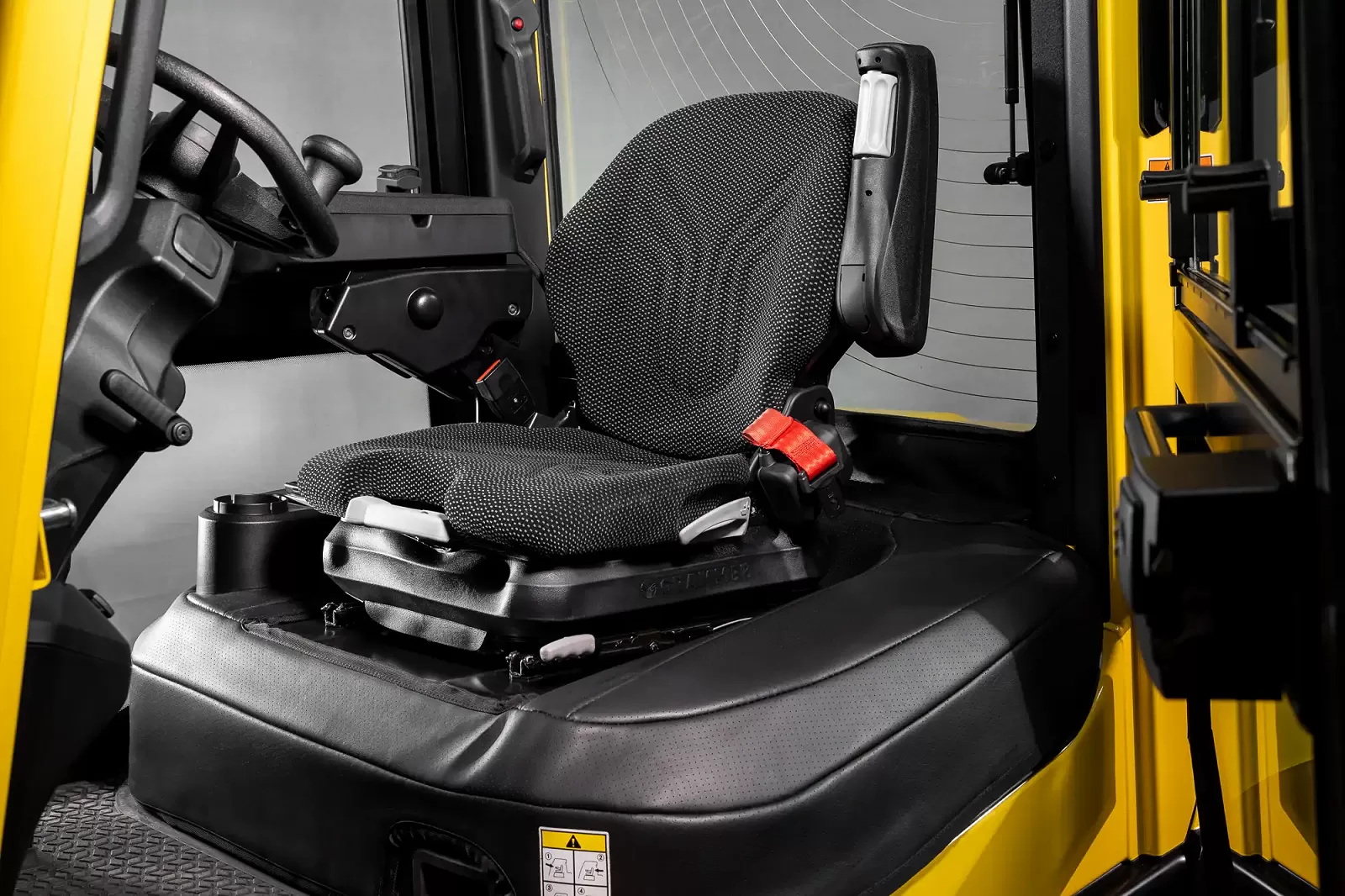

Flip up arm rest

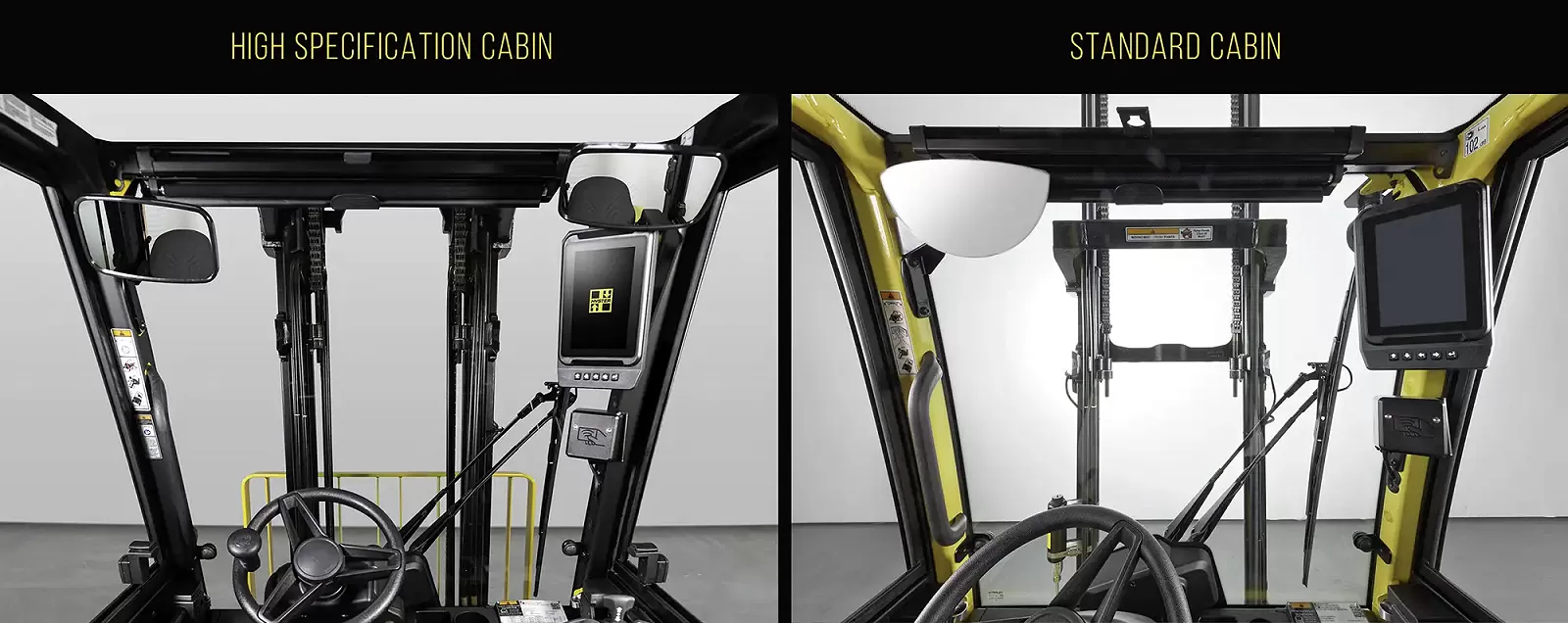

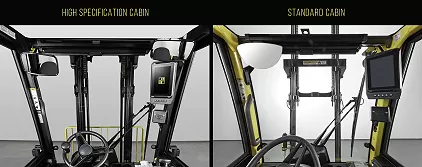

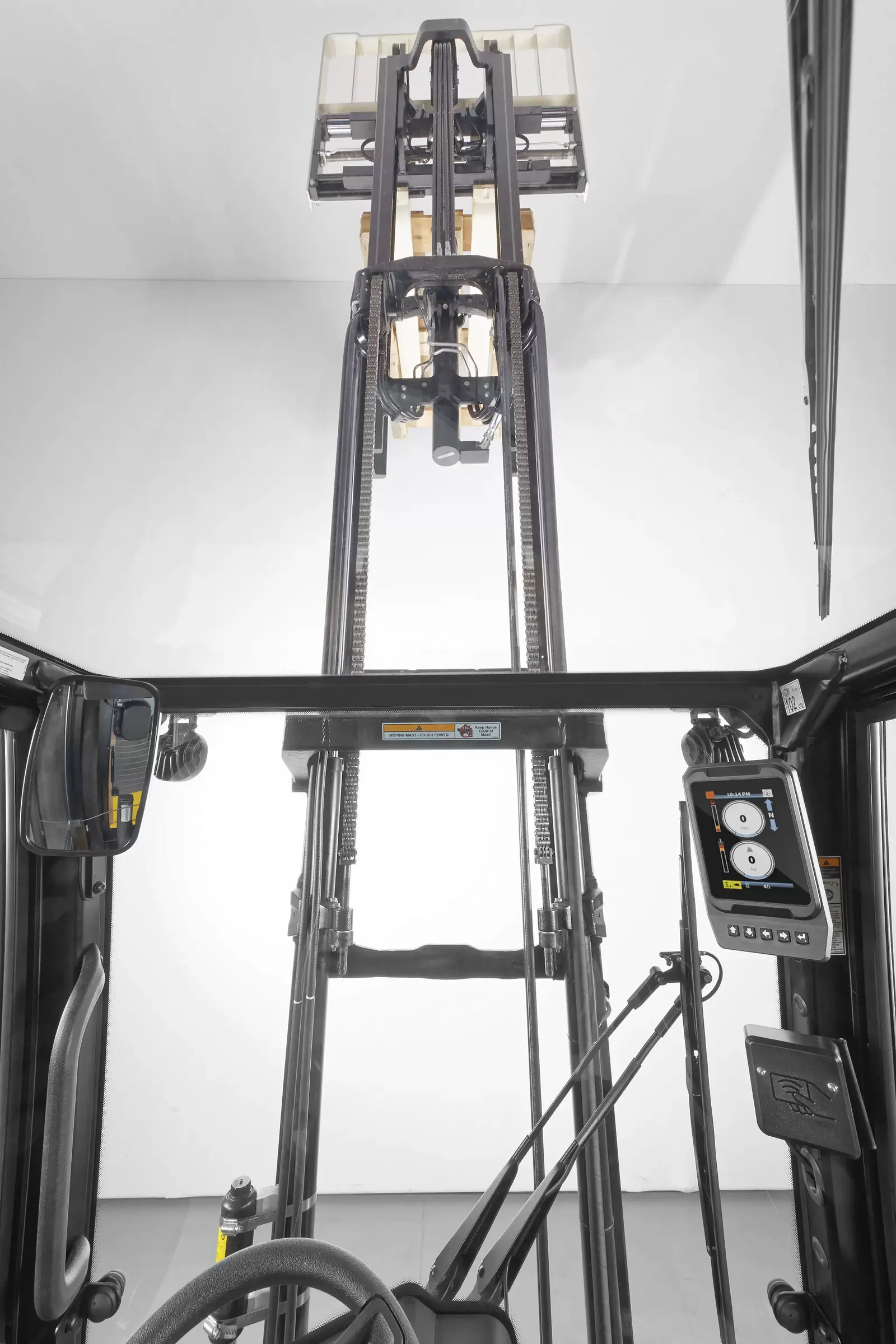

Mast visibility

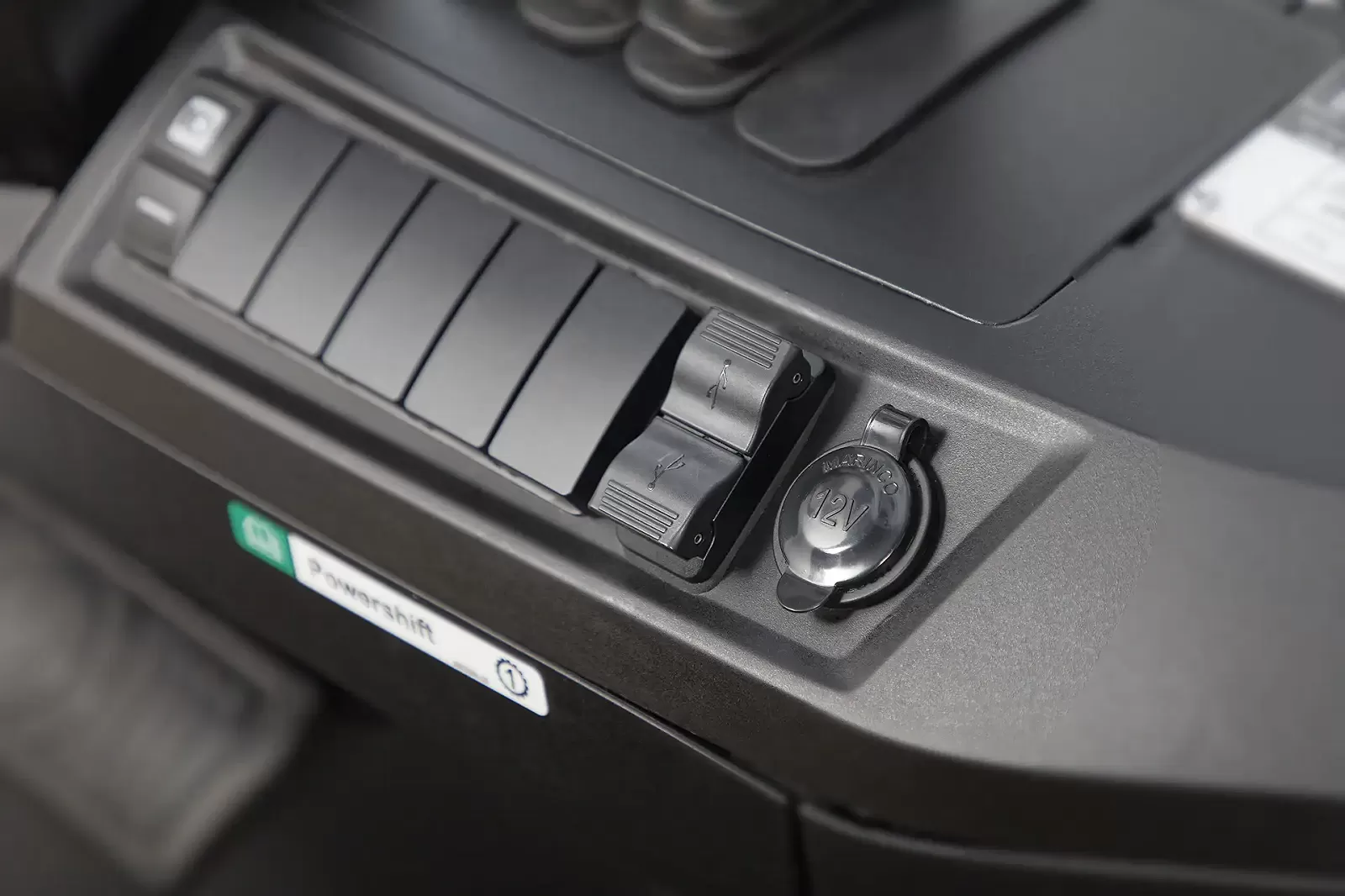

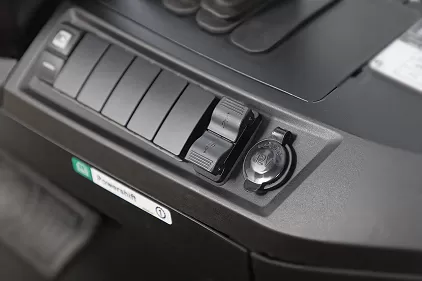

Twin USB charging sockets

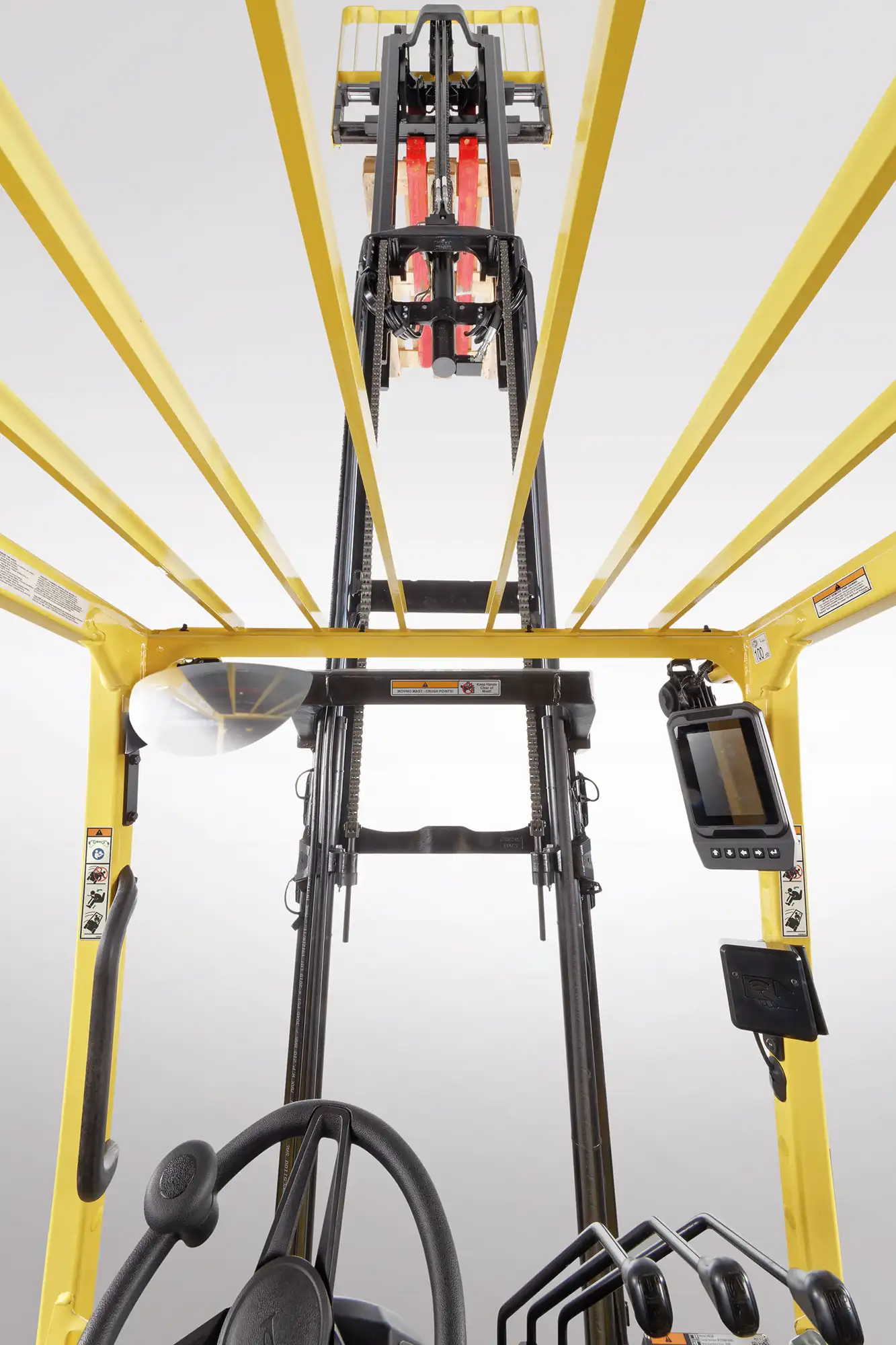

Grid style overhead guard
Specs
| H2.0A | H2.5A | H2.5A6 | H3.0A | H3.5A | |
|---|---|---|---|---|---|
| Load Capacity (kg) | 2,000 | 2,500 | 2,500 | 3,000 | 3,500 |
| Load Centre (mm) | 500 | 500 | 600 | 500 | 500 |
| Lift Height (mm) | 8,550 | 8,550 | 8,550 | 8,070 | 8,070 |
| Turning Radius (mm) | 2,191 | 2,263 | 2,333 | 2,374 | 2,449 |
| Overall width (mm) | 1,160 / 1,280 / 1542 | 1,160 / 1,280 / 1542 | 1,186 / 1,353 / 1545 | 1,186 / 1,353 / 1545 | 1,186 / 1,353 / 1545 |
| Weight (kg) | 3,613 | 3,990 | 4,292 | 4,642 | 4,910 |
| Engine (kg) | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG |
| Transmission | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix |
