Liftsmart LS Wrap Pallet Wrapper

The LS Wrap pallet wrapper from Liftsmart is an intelligent standard pallet wrapping machine.

Incorporating a high quality Siemen’s control system and operating panel the wrapper is able to pre-stretch wrap 200% using less film to wrap each pallet providing savings of up to 30% on film costs.

200% Pre-Stretch Rate

The Pre-stretch function stretches film out evenly up to 200%, provides savings up to 30% on film costs

Automatic Cut Function

Wrap is automatically precision cut by the wrapper

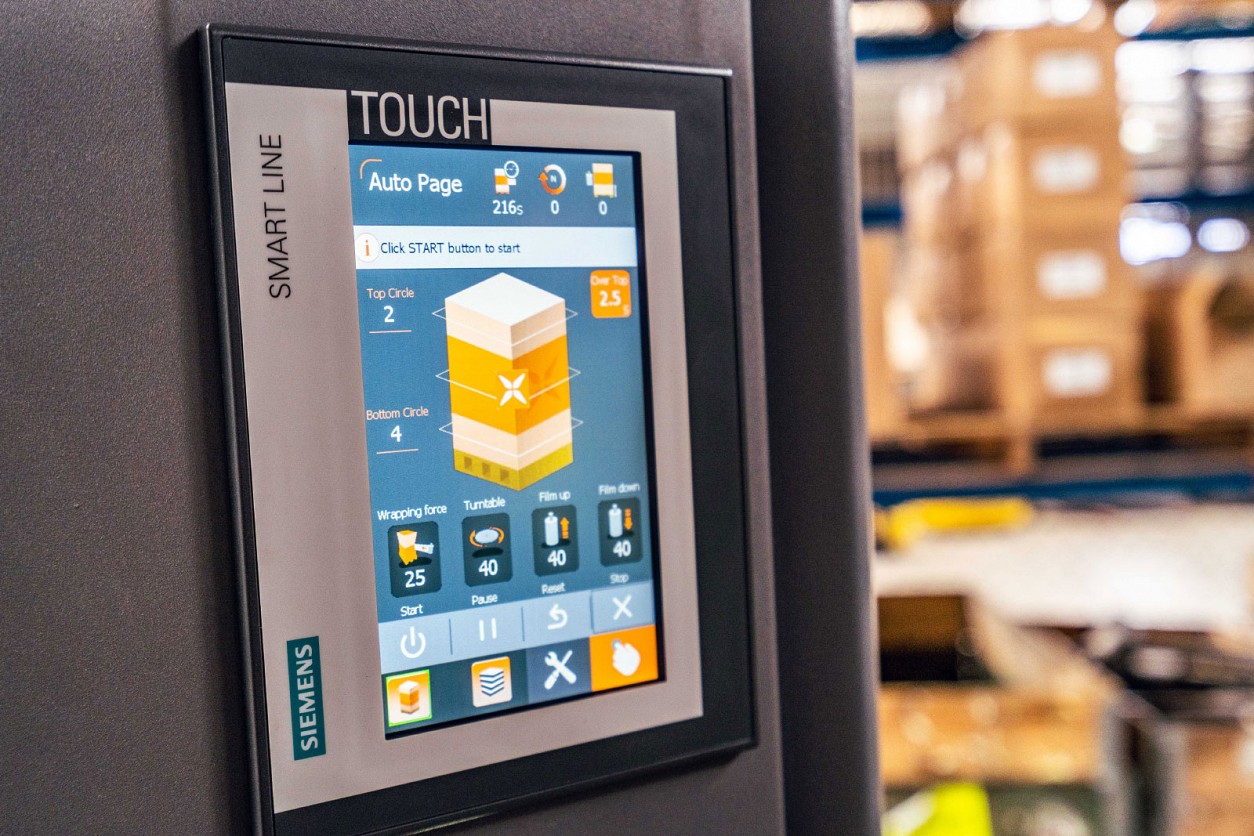

LCD Touch Operating System

Wrapper is operated via an intuitive and easy to use Siemen’s LCD touch screen

SIEMENS Control System

High quality Siemen’s control system ensures accurate operation. High quality spare parts are readily available

Safety Device

Safety barrier under film carriage protects the operator

Alarm System

Wrapper is equipped with an in-built automatic emergency alarm

  • 1650mm Turntable
  • 2400mm packing height
  • 200% pre-stretch rate (1m stretch to 3m)
  • Max load weight: 2000kg
  • Automatic cut film
  • Film carriage safety device
  • SIEMENS control system
  • SIEMENS operation panel
  • Intelligent alarm system with LED indicator
Liftsmart LS Wrap Pallet Wrapper

Specifications

LS-Wrap
Load Weight (kg) 2,000
Packing Height (mm) 2,400
Turntable Size (mm) 1,650
Wrapping Speed 35 load / H (1×1.2×1.8m pallet/ Wrap two layers)
Film Width (mm) 500
Film Diameter (mm) 250
Voltage 220V-240V / 50 / 60 Hz Single-Phase
Dimensions (mm) 2,800 × 1,650 × 2,745
