The one size fits all approach is in the past and businesses require a truck that is configured to the demands of their application.
The Yale N Series is a game changer for customers, redefining the way they operate with a truck designed to meet the unique demands of their applications. This allows customers to tackle constantly changing operational and logistical challenges and reach new heights of performance.

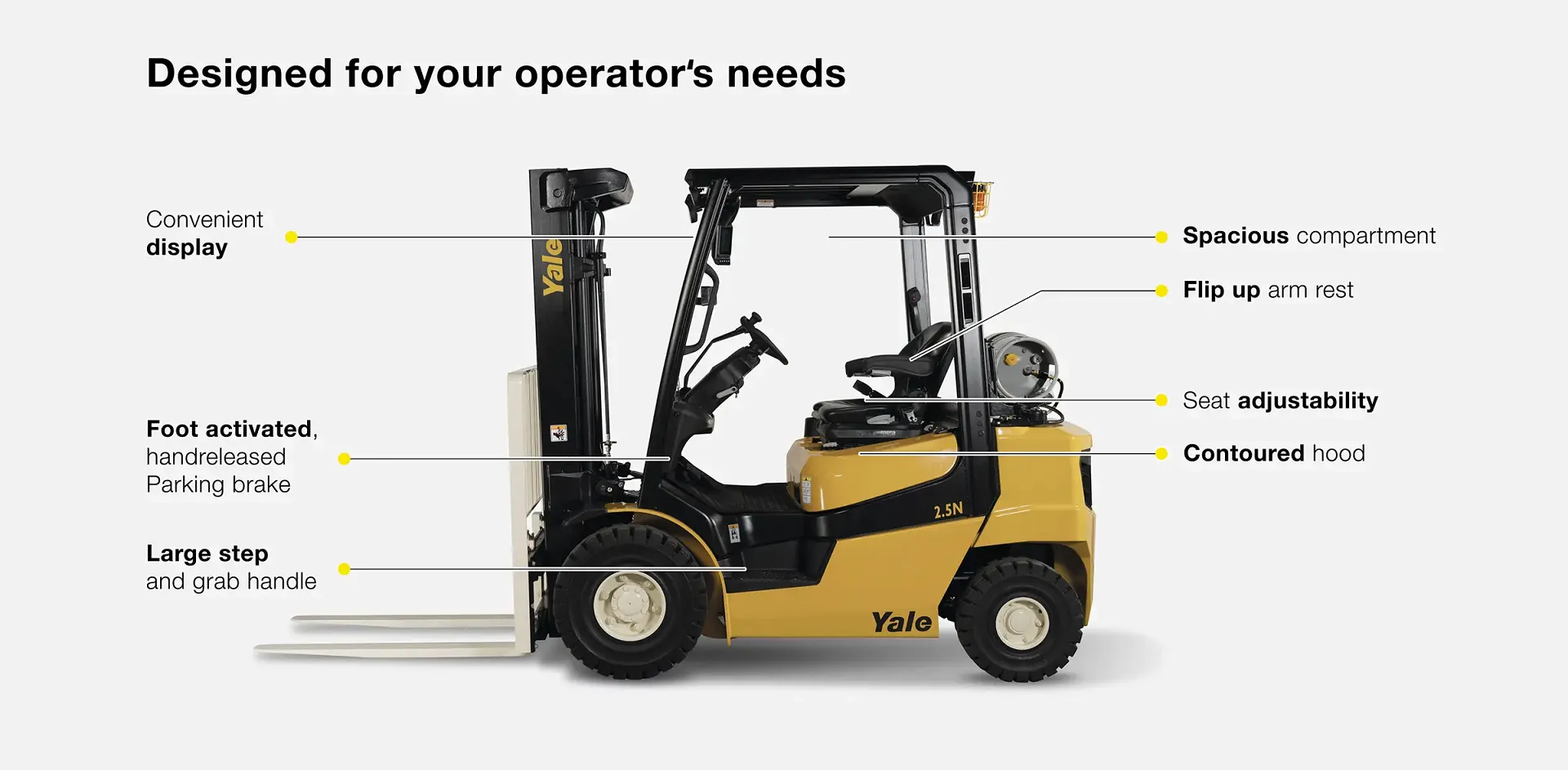

Operator Centric Design
Ergonomic workspace boosts comfort, productivity for operators all shift.
Safety Features that Boost Productivity
Operator assistance features support operators and pedestrians' awareness.
Low Total Cost of Ownership
Reliability, durable parts cut downtime, maintenance costs, customisation for affordability.
Forklift safety is critical in the materials handling industry. The innovative system helps support confidence and promote
safe operating practices for forklift operators. Click through each aspect to learn more.

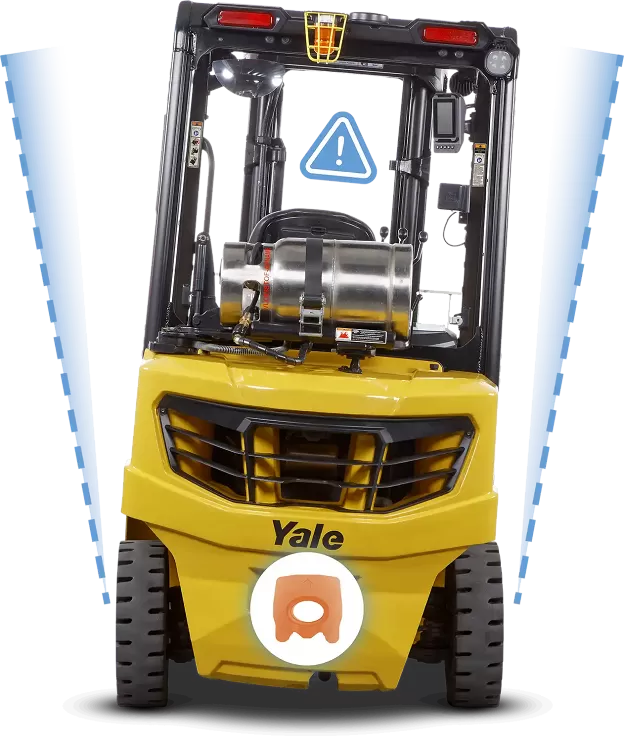

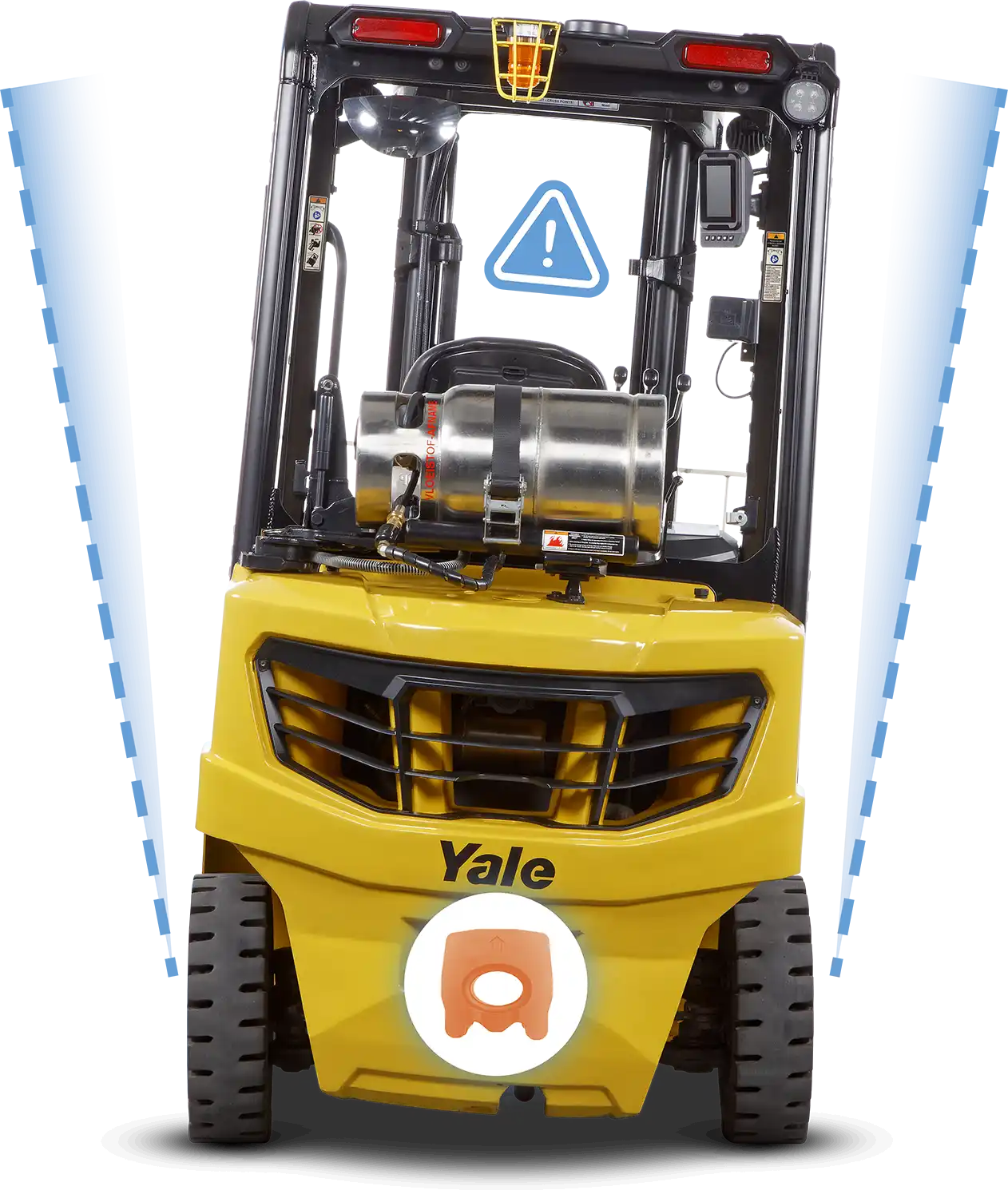

Reduces lift truck lean in turns, helping to improve lateral stability. The innovative steer axle design allows for superior travel over uneven surfaces. The system is 100% maintenance free, with no controller, sensors or wiring.

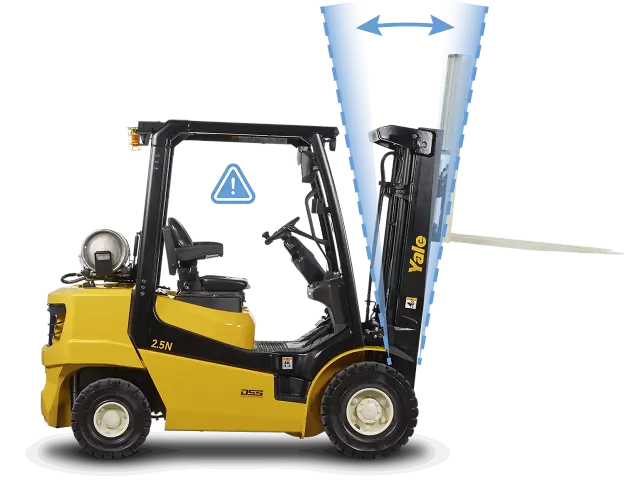

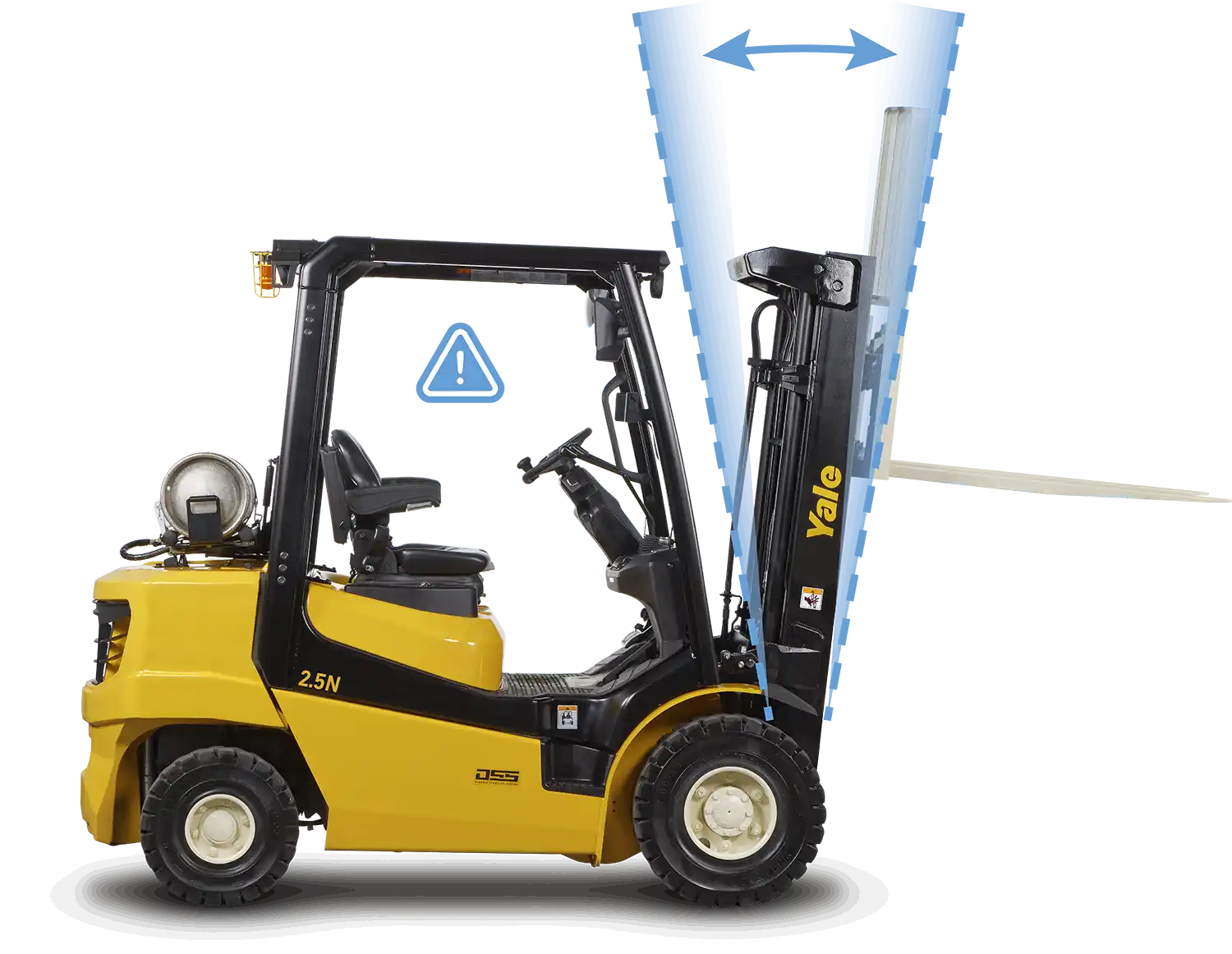

Limits tilt speed and forward tilt range when the carriage is raised above the height threshold while carrying a load. Operator will receive a visual indicator on the lift truck display and an audible alert.

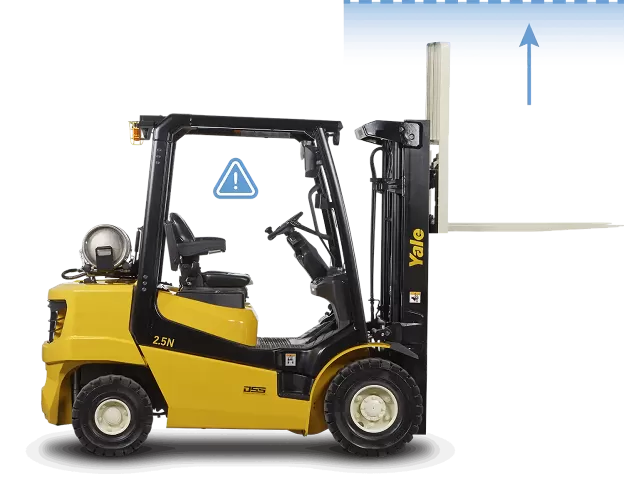

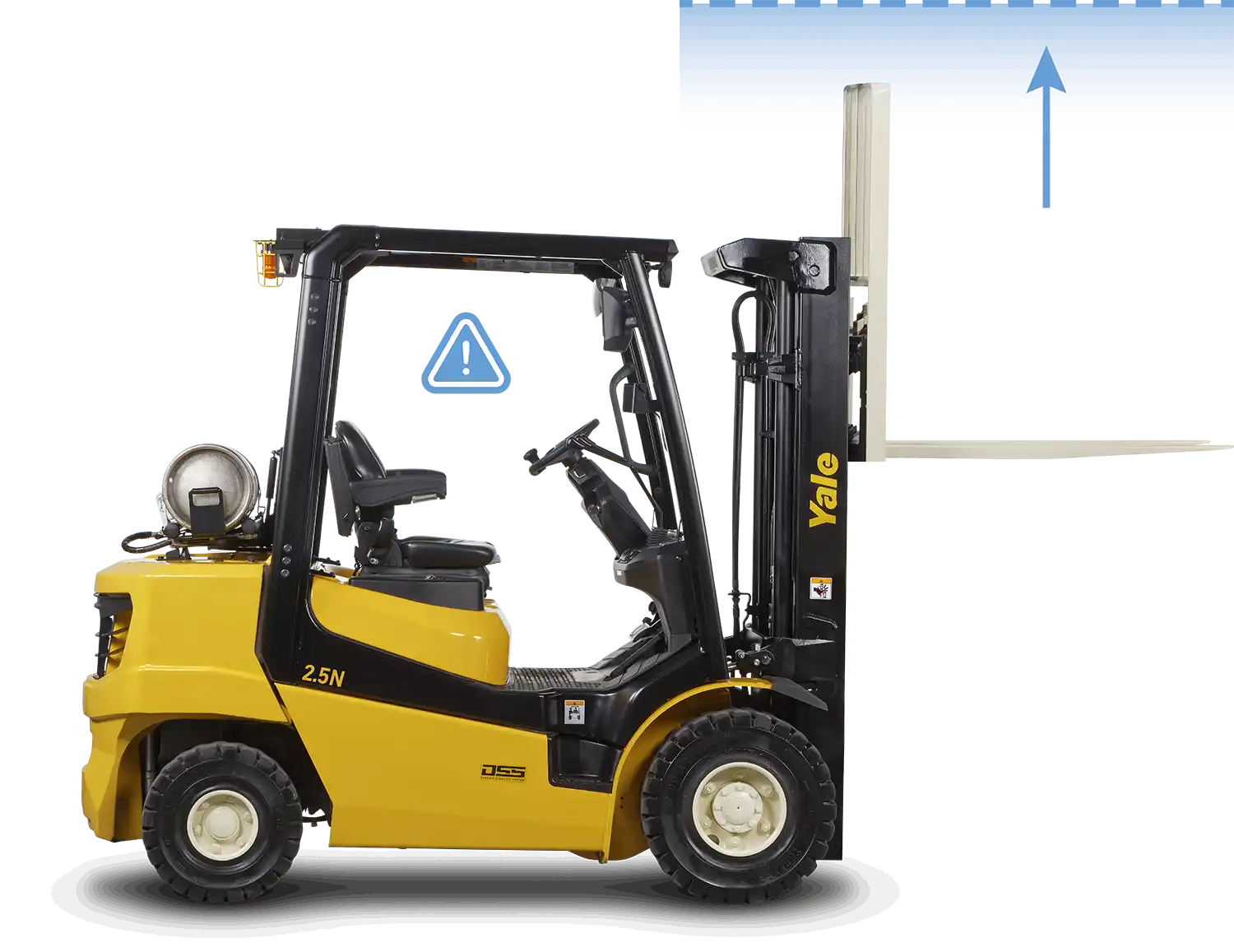

Limits truck speed when the carriage is raised above the height threshold. Operator will receive a visual indicator on the truck display and an audible alert.

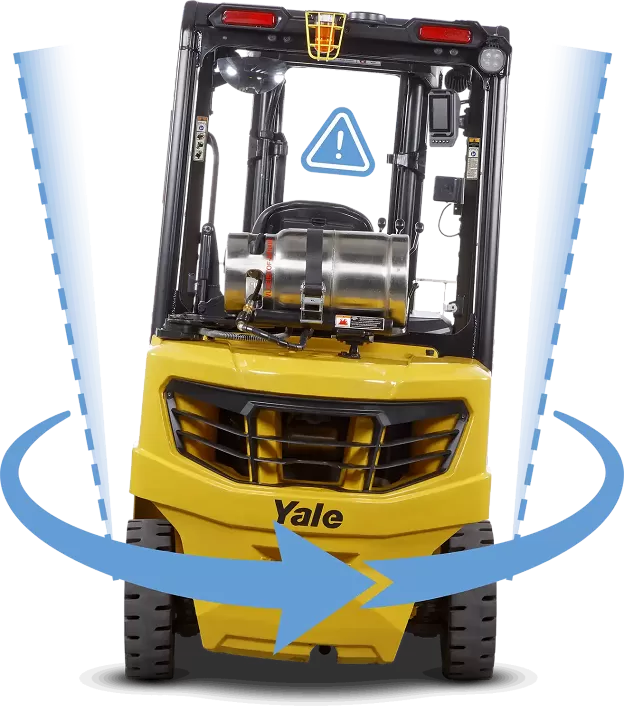

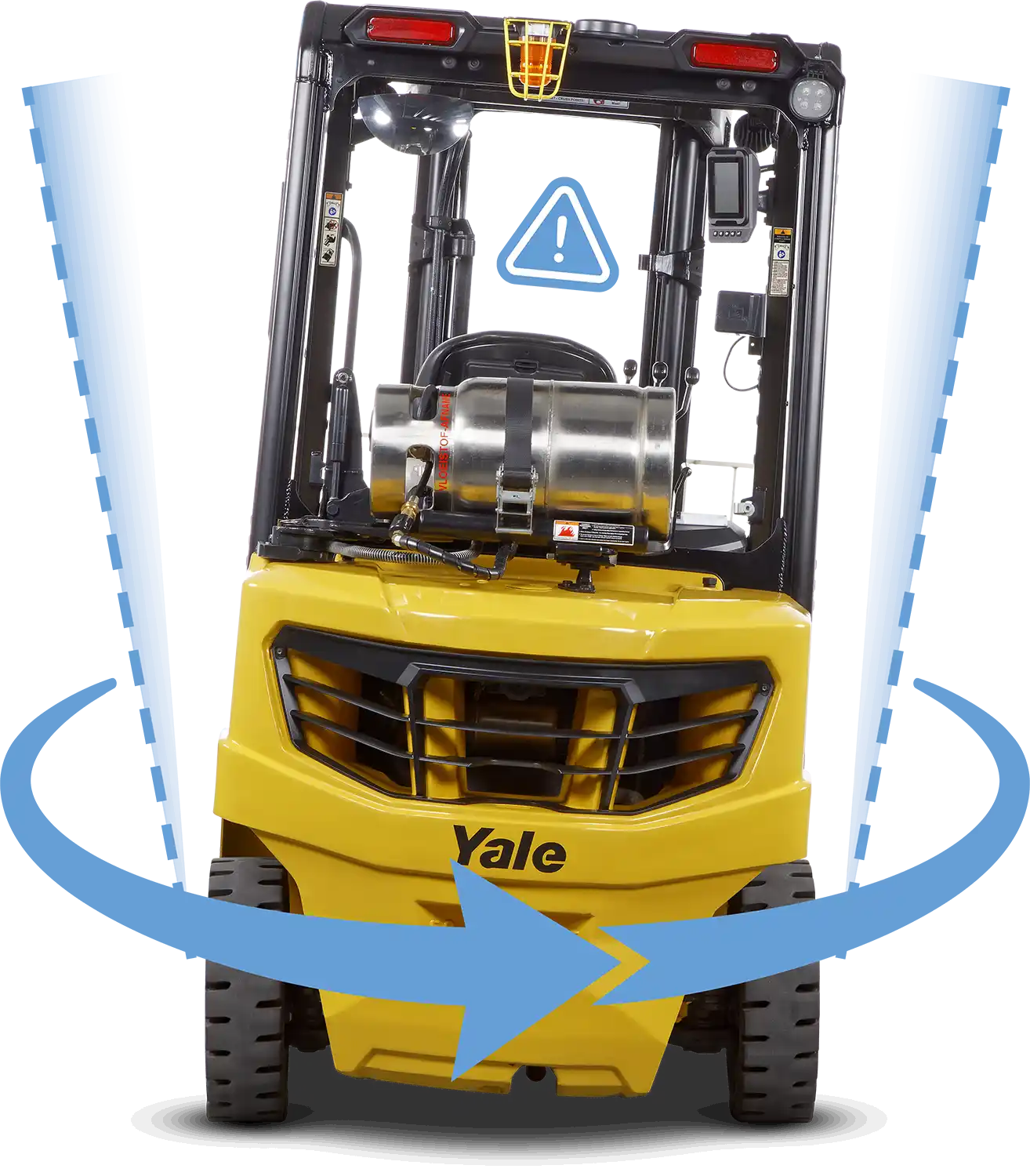

Dynamically limits speed when driving around corners, based on how tightly the truck is turning. Operator will receive a visual indicator on the forklift display and an audible alert. Dynamically limits speed when driving around corners, based on how tightly the truck is turning. Operator will receive a visual indicator on the forklift display and an audible alert.
Available in the 2,000 – 3,500 kg capacity range, the Series N can be configured to match your unique requirements

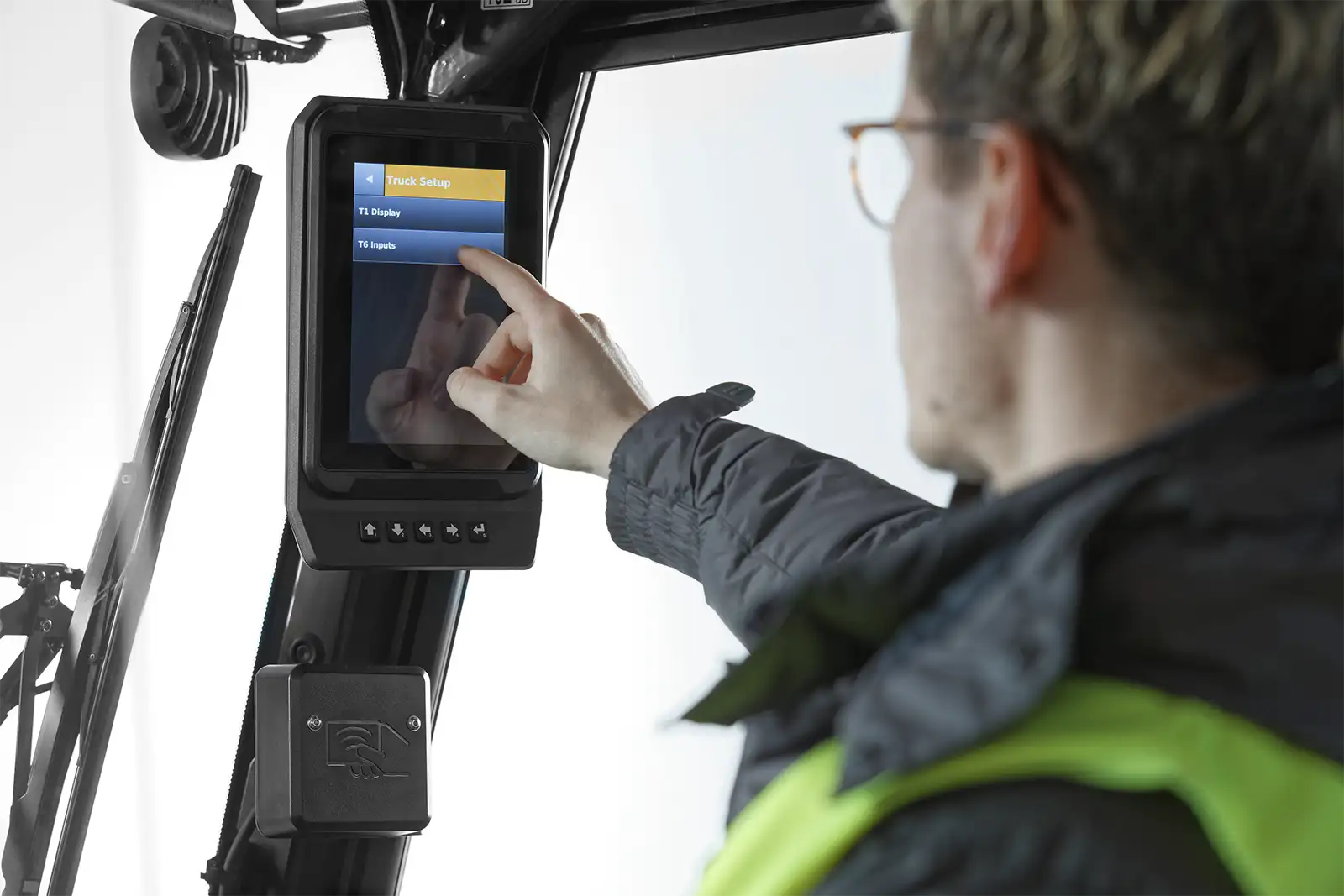

Colour touchscreen display

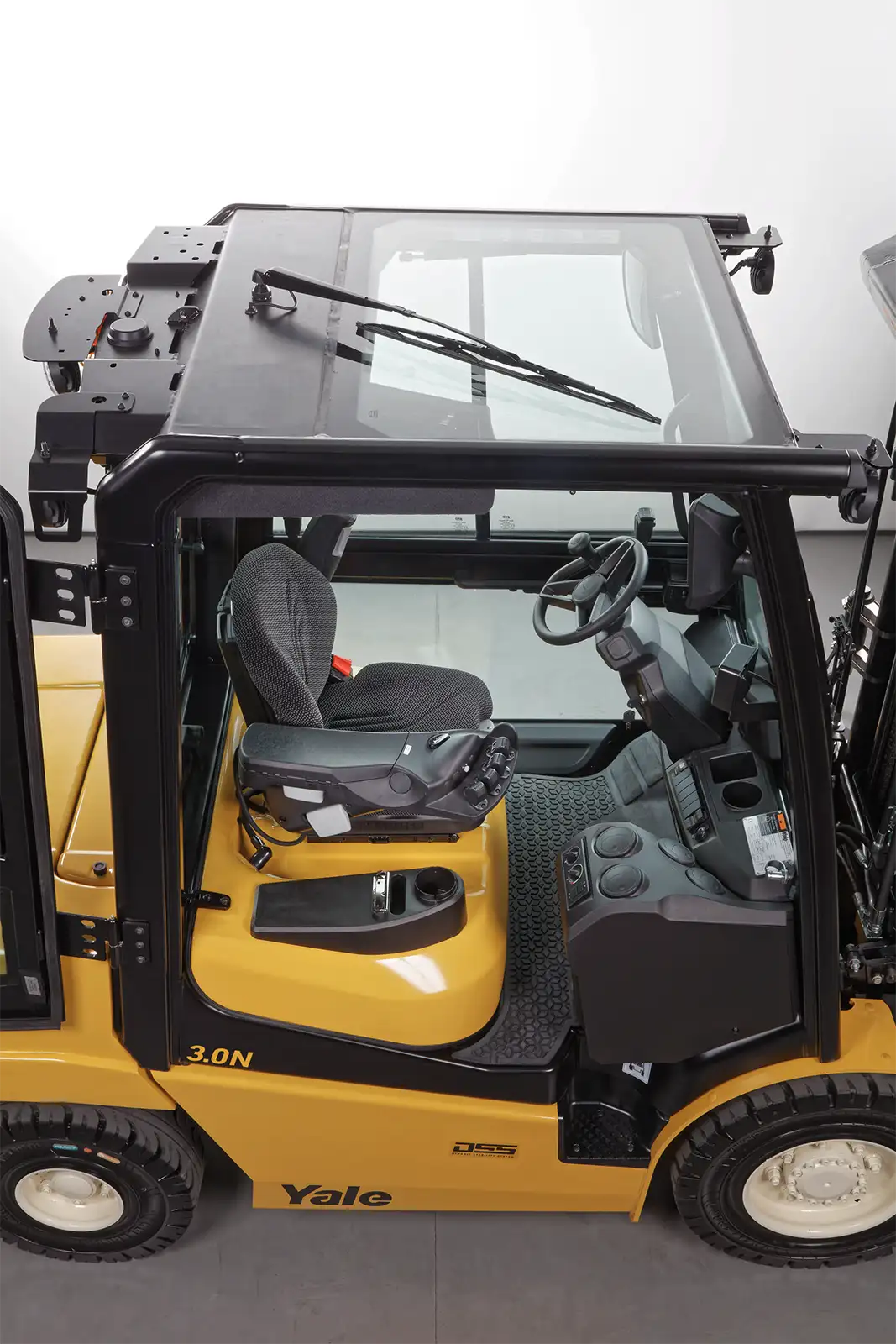

Clear view overhead guard

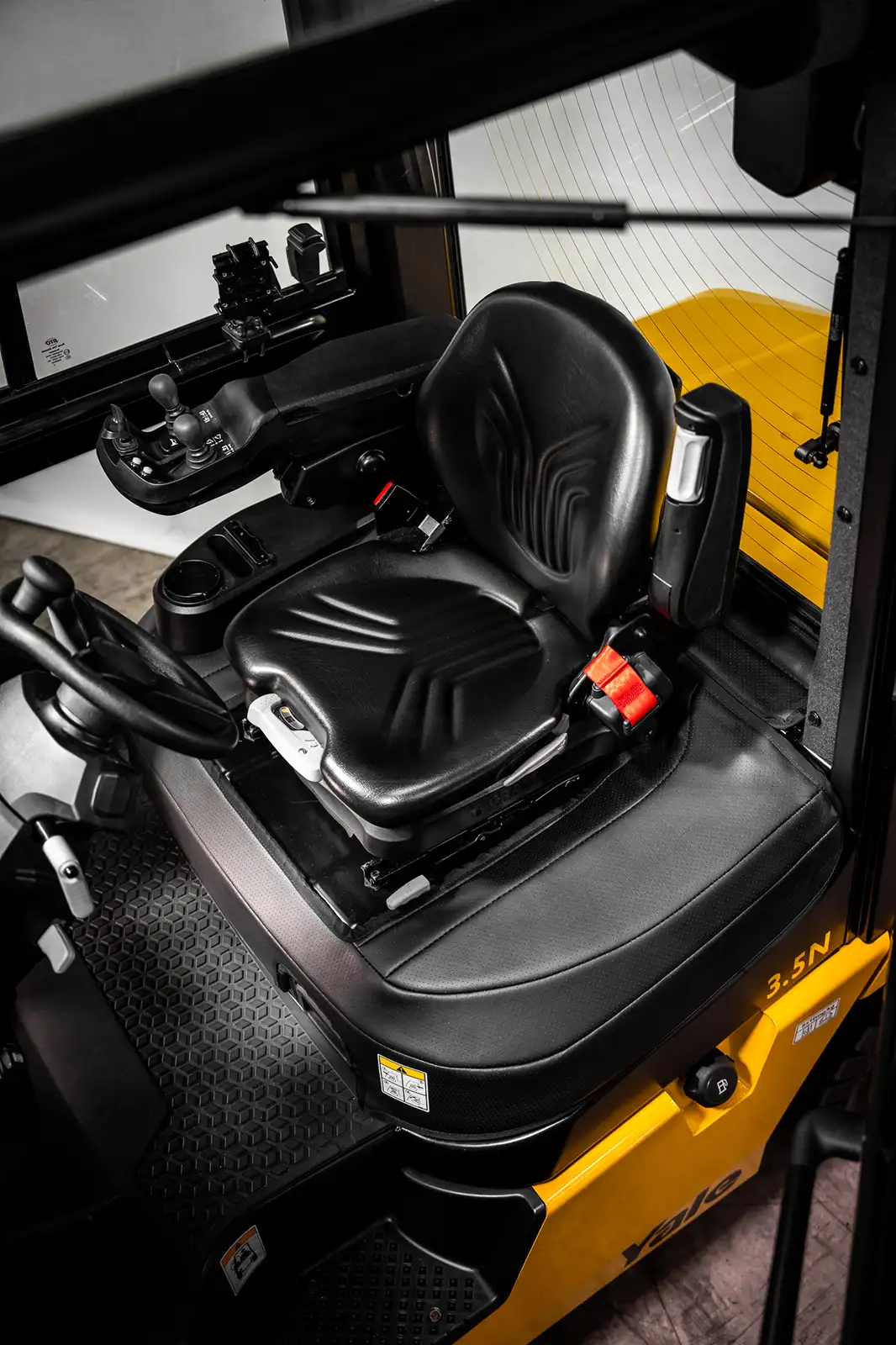

Flip up arm rest

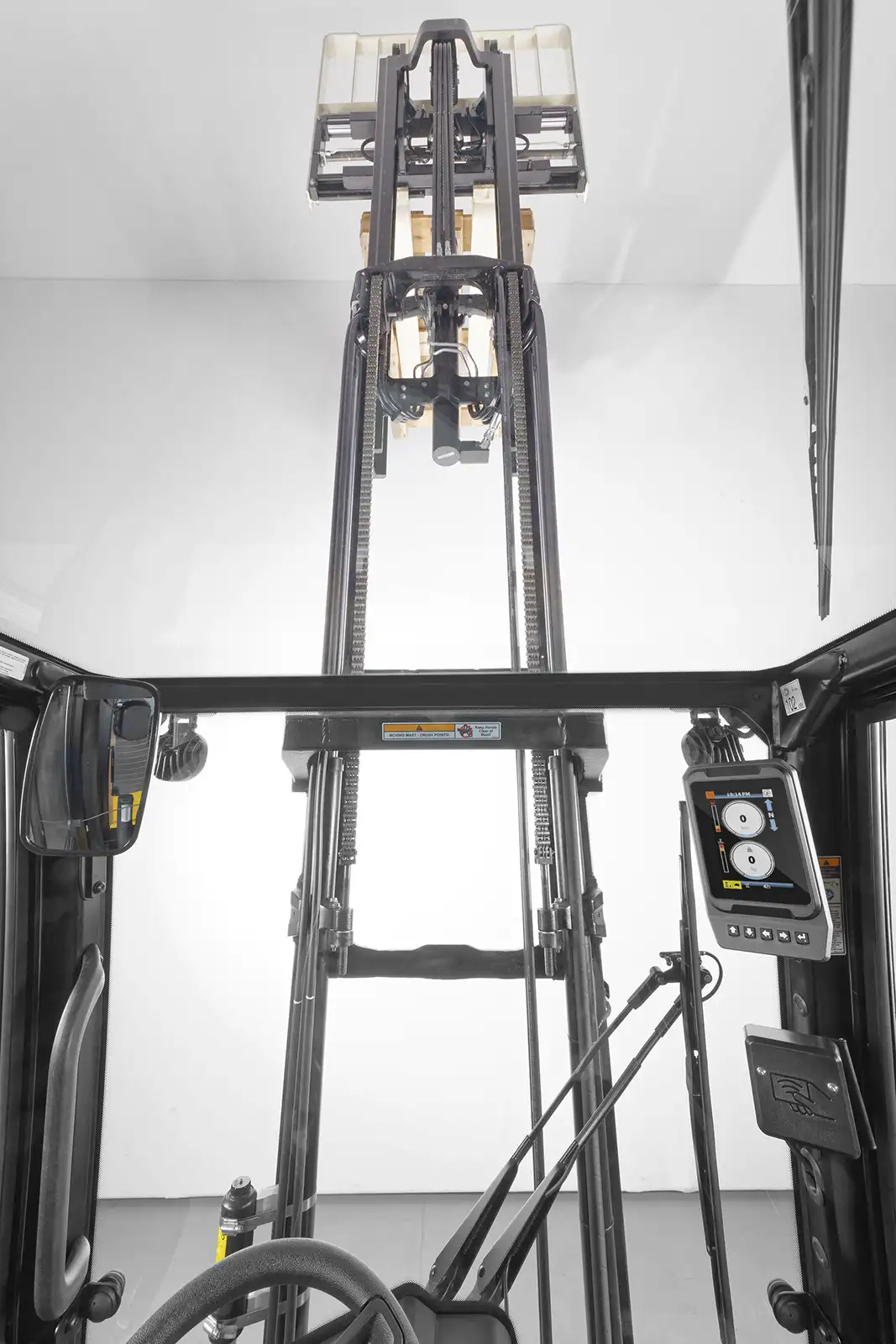

Mast visibility

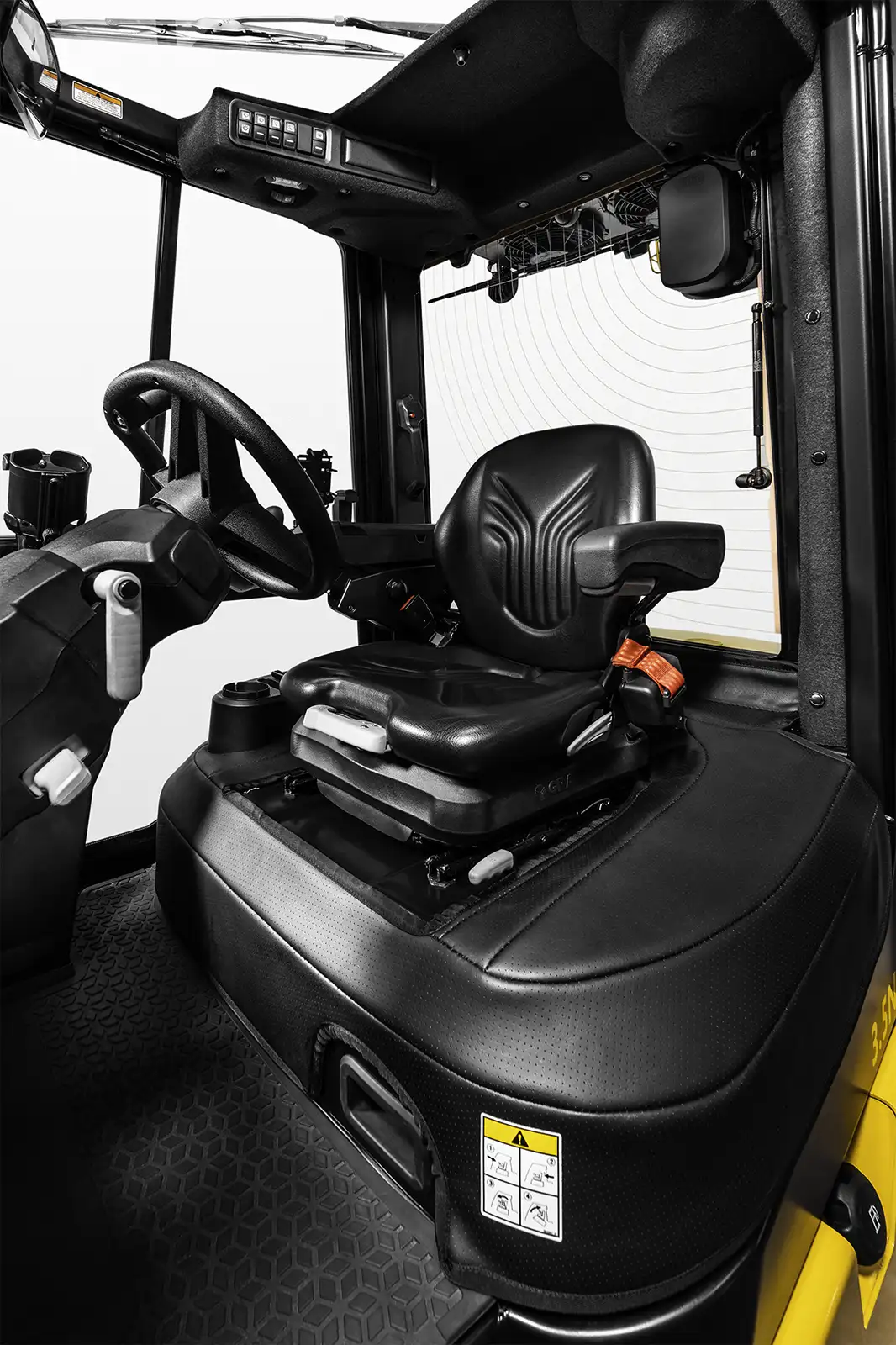

Clear rear view

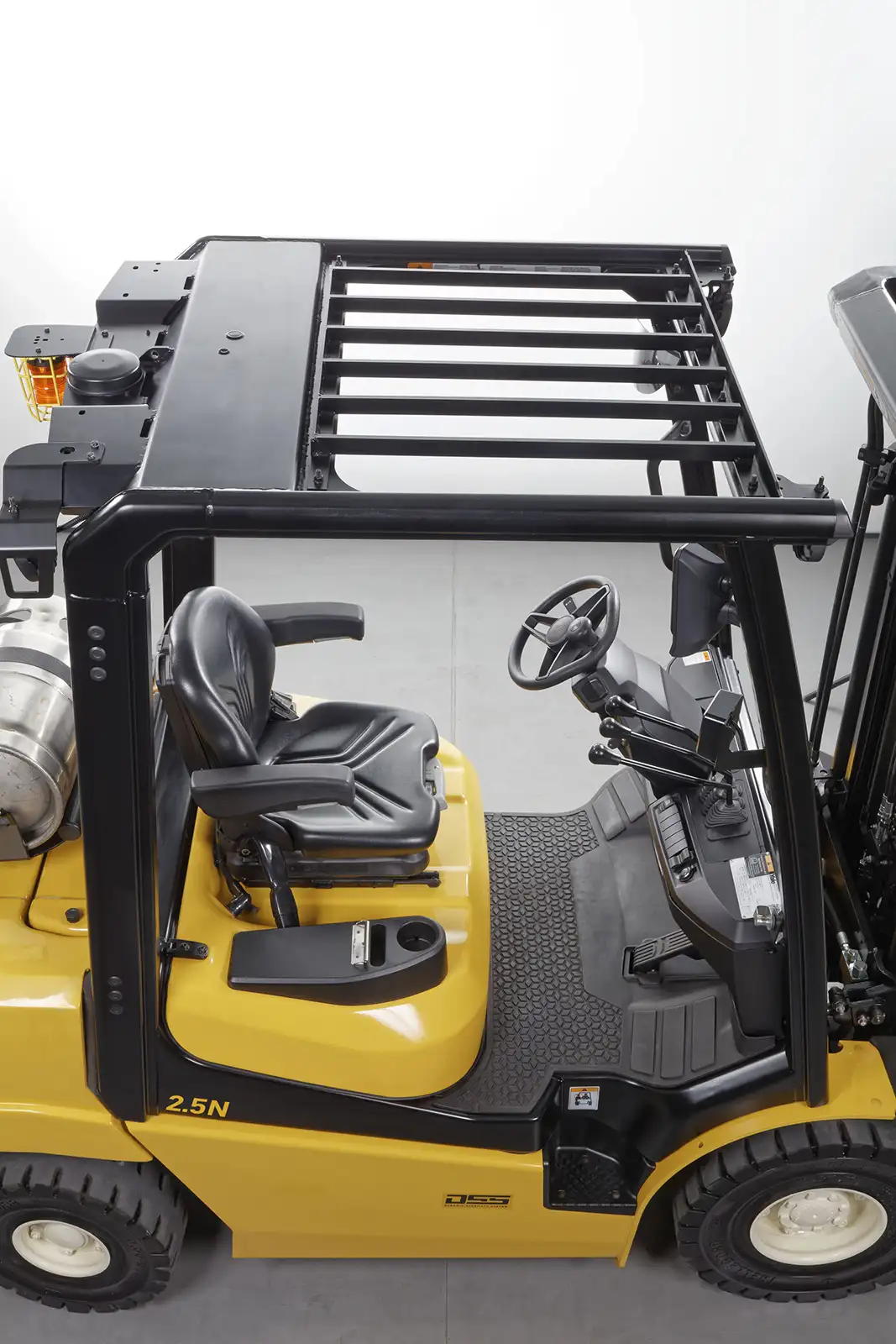

Grid style overhead guard
| GDP/GLP2.0N | GDP/GLP2.5N | GDP/GLP2.5N6 | GDP/GLP3.0N | GDP/GLP3.5N | |
|---|---|---|---|---|---|
| Load Capacity (kg) | 2,000 | 2,500 | 2,500 | 3,000 | 3,500 |
| Load Centre (mm) | 500 | 500 | 600 | 500 | 500 |
| Lift Height (mm) | 8,550 | 8,550 | 8,550 | 8,070 | 8,070 |
| Turning Radius (mm) | 2,191 | 2,263 | 2,333 | 2,374 | 2,449 |
| Overall width (mm) | 1,160 / 1,280 / 1542 | 1,160 / 1,280 / 1542 | 1,186 / 1,353 / 1545 | 1,186 / 1,353 / 1545 | 1,186 / 1,353 / 1545 |
| Weight (kg) | 3,613 | 3,990 | 4,292 | 4,642 | 4,910 |
| Engine (kg) | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG | Yanmar 2.1L Diesel / Yanmar 2.2L LPG |
| Transmission | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix | Powershift 1-speed / Techtronix |
