Combi-MG Mobile Gantry

Combi-MG Mobile Gantry
Combi-MG Mobile Gantry
Combi-MG
Combi-MG
Combi-MG

Type:high capacity

Make:combilift

Power:Internal Combustion

Max Capacity:80 tonne

Combi-MG Advantages

  • The Combi-MG (Mobile Gantry) allows for increased storage with reduced aisle widths of just 5 feet (1.5m)
  • Available in V3800 Kubota Diesel engine and LP Gas option
  • Multi-directional, 6 steering options
  • Overall dimensions can be customised to suit the customer’s application
  • Side shift 200”/5080 mm. Full side shift from left to right increases storage and flexibility
  • Independent telescopic for maximum lift whilst also capable of passing under low heights
  • Independent lift allows lifting and lowering of coil/load
  • Rotating C-Hook for handling coils in both directions and rotating, manual or automatic option
  • Rated lift capacity from 20 tonne to 80 tonne

Type:high capacity

Make:combilift

Power:Internal Combustion

Max Capacity:80 tonne

Specifications

MG MG-T
Load Capacity (kg) 20,000 – 80,000 20,000 – 80,000
Height of Load Area (mm) 4,000 4,000 – 5,800
Engine Type 96HP V3800 Kubota Diesel Engine 96HP V3800 Kubota Diesel Engine

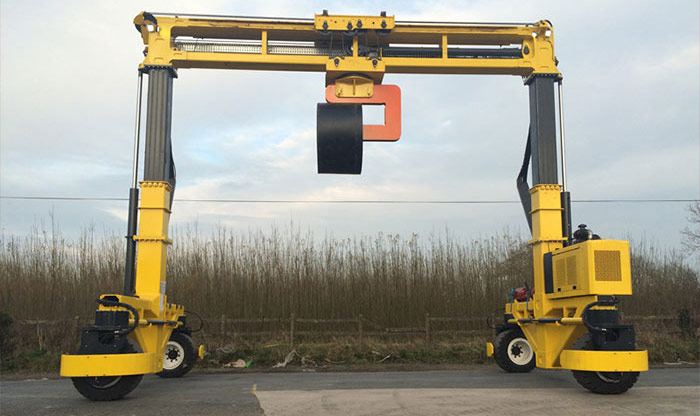

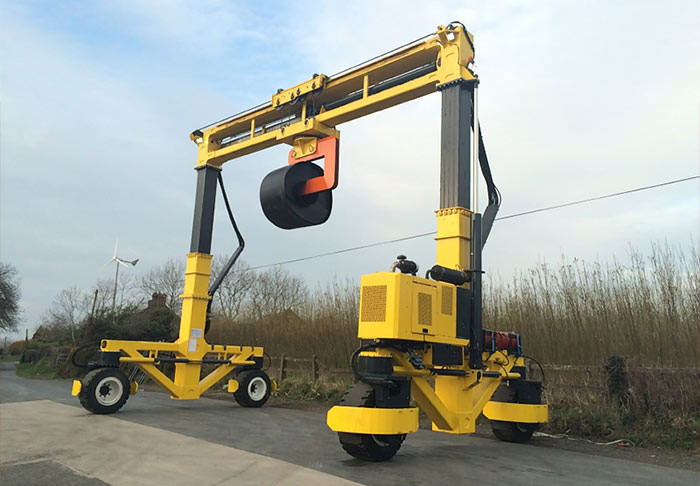

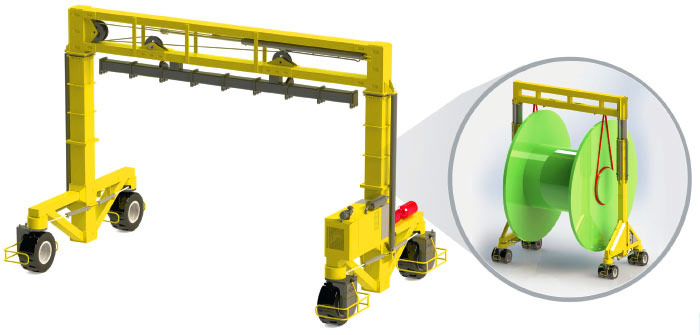

Product Images

Combi-MG Mobile Gantry
Combi-MG Mobile Gantry
Combi-MG Mobile Gantry

Product Videos


Handling Straddle Carrier from Combilift on Vimeo.


Coil Handling from Combilift on Vimeo.
