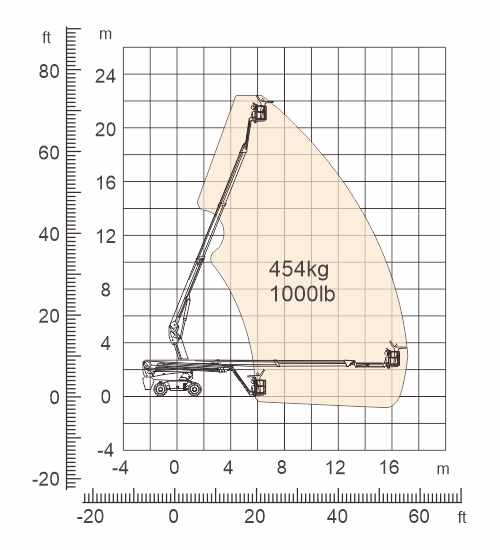

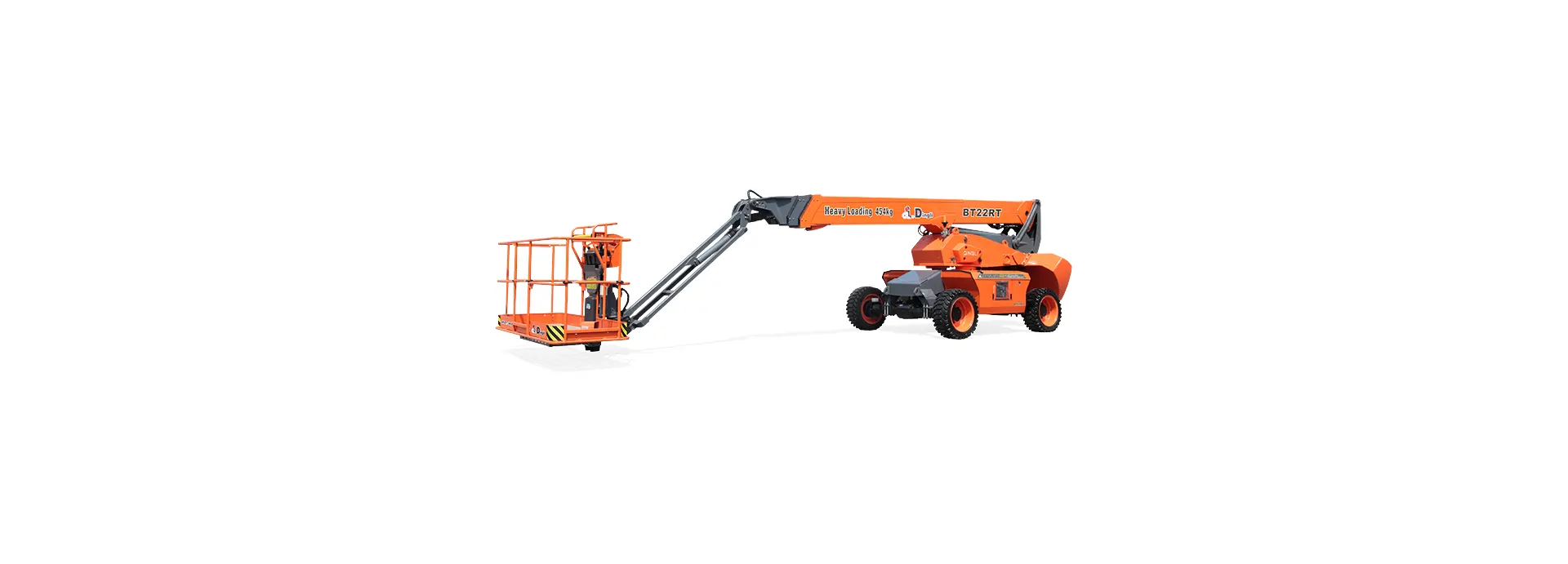

Dingli’s BT22RT combustion engine straight boom lift has a maximum platform height of 20.51m providing a maximum working height of 22.51m with an operating range of 17.28.
The platform can accommodate up to 3 occupants with a S.W.L of 300kg / 454kg.
M Series Highlights
Developed by MAGNI, DINGLI’s Italian R&D center.
● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform.
● Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance.
● Component downward design with lowered center of gravity.
● Suitable for standard container transport.
● Equipped with 55.4kw high power engine, gradeability up to 45%.

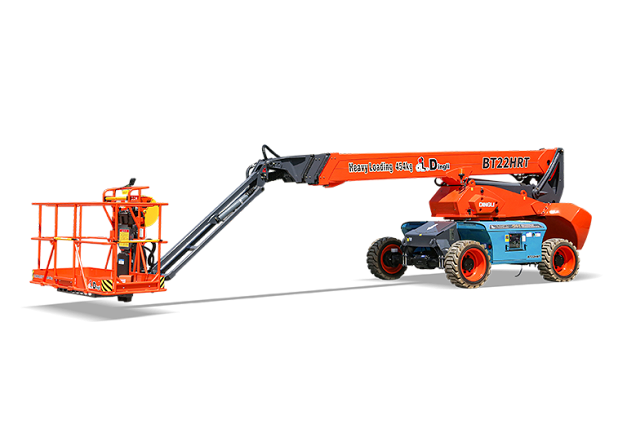

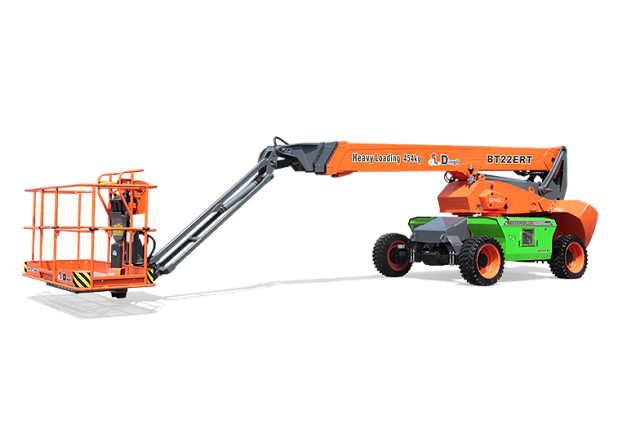

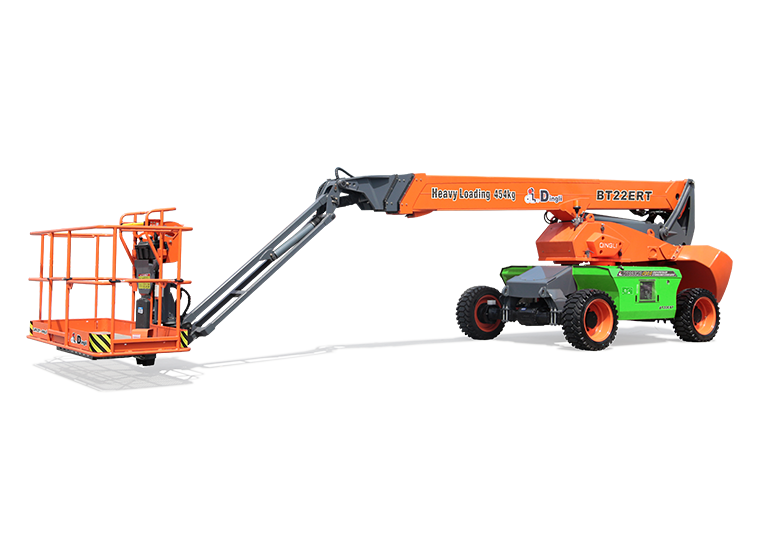

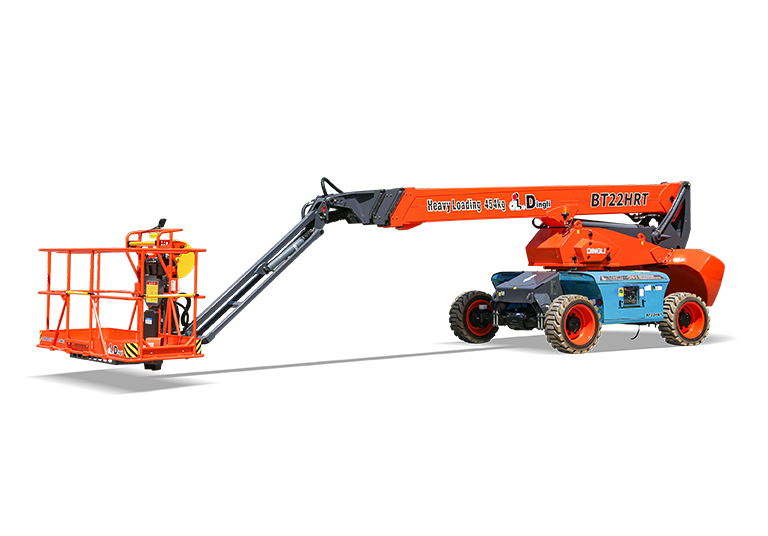

Also available in electric (BT22ERT) and hybrid (BT22HRT) models.
