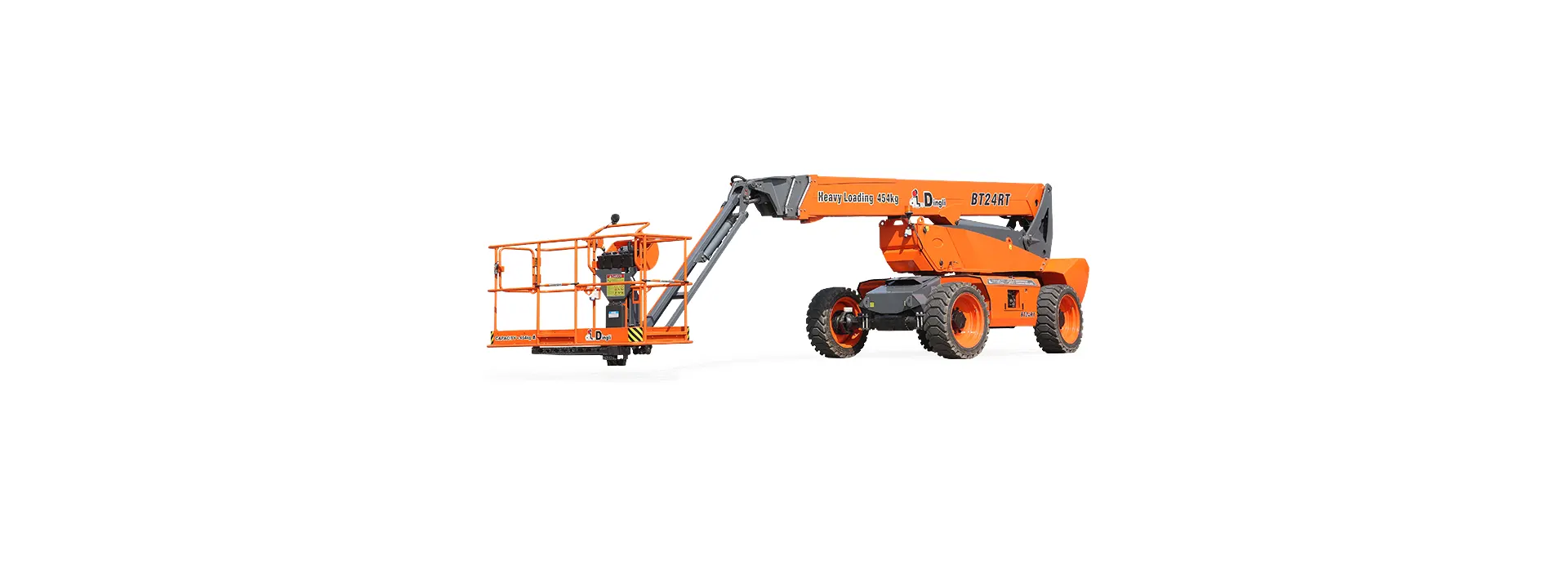

Dingli BT24RT Boom Lift

Dingli BT24RT Boom Lift
Dingli BT24RT Boom Lift
Dingli BT24RT
Dingli BT24RT
Dingli BT24RT

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:22.8 metres

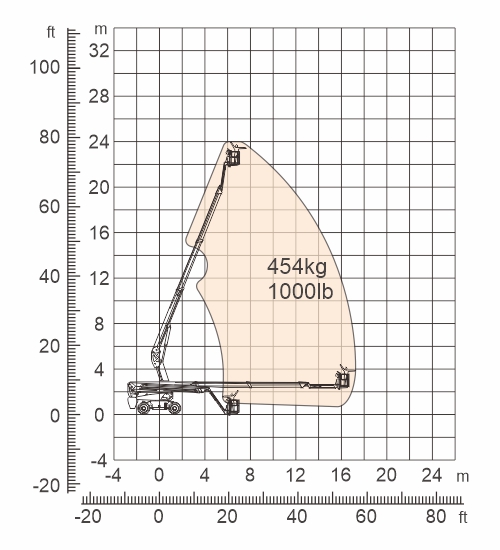

Dingli’s BT24RT combustion engine straight boom lift has a maximum platform height of 22.80m providing a maximum working height of 24.80m with an operating range of 17.90m.

The platform can accommodate up to 3 occupants with a S.W.L of 300kg / 454kg.

M Series Highlights

Developed by MAGNI, DINGLI’s Italian R&D center.

● Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform.
● Equipped with integrated axle, four-wheel drive & steering, 100% hydraulic differential lock, strong power and rough-terrain performance.
● Component downward design with lowered center of gravity.
● Suitable for standard container transport.
● Equipped with 55.4kw high power engine, gradeability up to 45%.

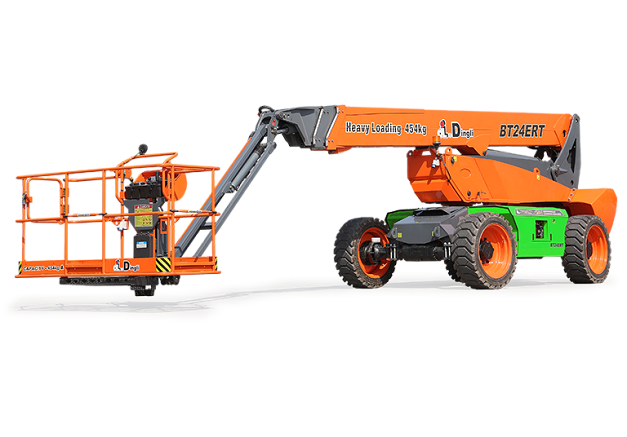

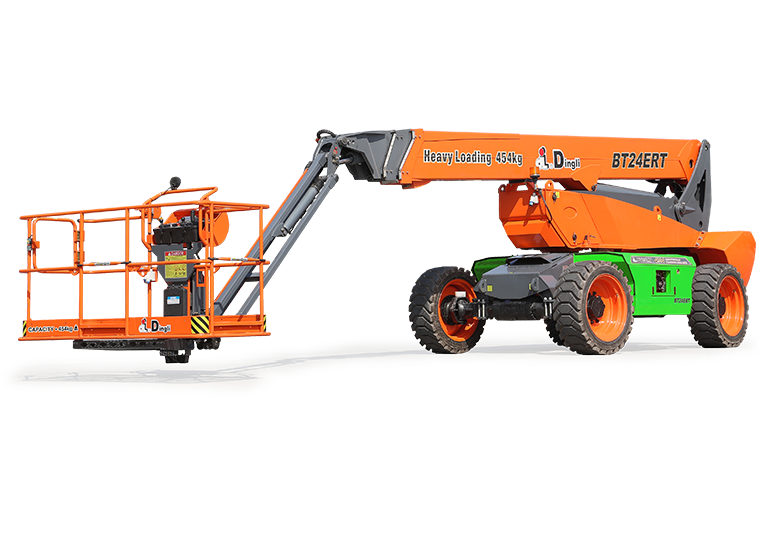

Also available in electric (BT24ERT) and hybrid (BT24HRT) models.

Type:boom lift

Make:dingli

Power:Electric or Internal Combustion

Max Height:22.8 metres

Specifications

BT24RT Spec Sheet PDF

Product Images

Dingli BT24RT Boom Lift
Dingli BT24RT Boom Lift
Dingli BT24RT Boom Lift
