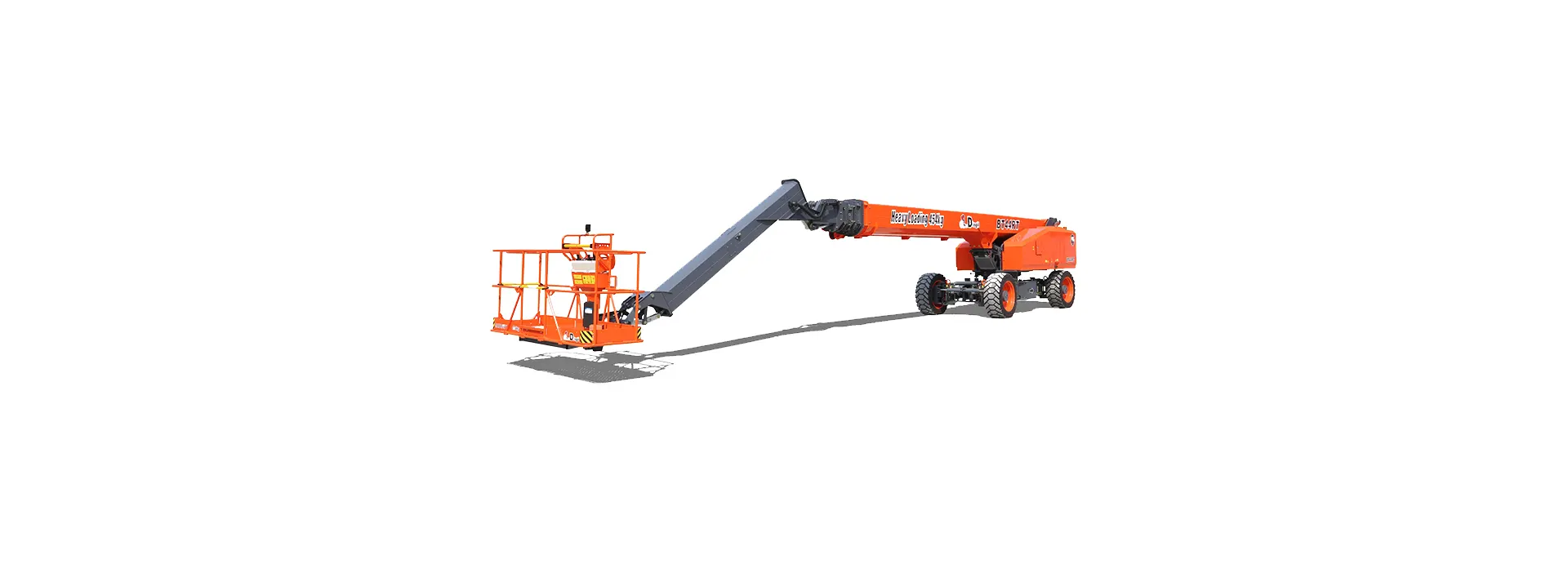

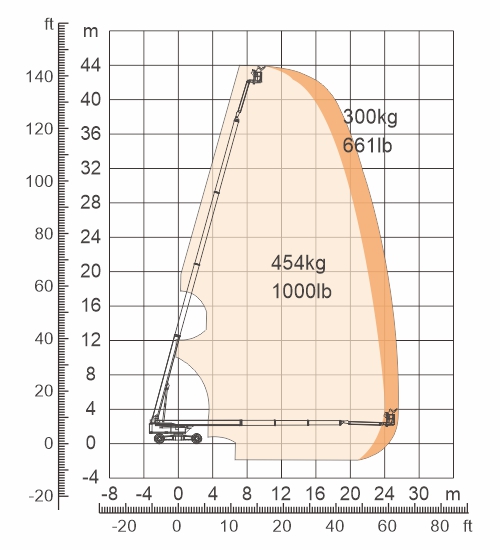

Dingli’s BT44RT combustion engine straight boom lift has a maximum platform height of 42.44m providing a maximum working height of 44.44m with an operating range of 25.60m.
The platform can accommodate up to 3 occupants with a S.W.L of 300kg / 454kg.
T Series Highlights
• Developed by TEUPEN, DINGLI’s German R&D center.
• Modular design horizontally & vertically, 85% of the components common in the full range, electric / diesel / hybrid models developed on the same platform.
• Patented innovation of one key in-situ axle expansion, four-wheel drive & steering, axle expansion & retraction in narrow space at will.
• 40% increase in action efficiency compare with equivalent products in the industry.
• Cat3 safety architecture, full redundancy of electronic control software & hardware.
• Jib with 230°amplitude, which can be hooked back to suit standard container transport.
• Equipped with 55.4kw high power engine, gradeability up to 45%.

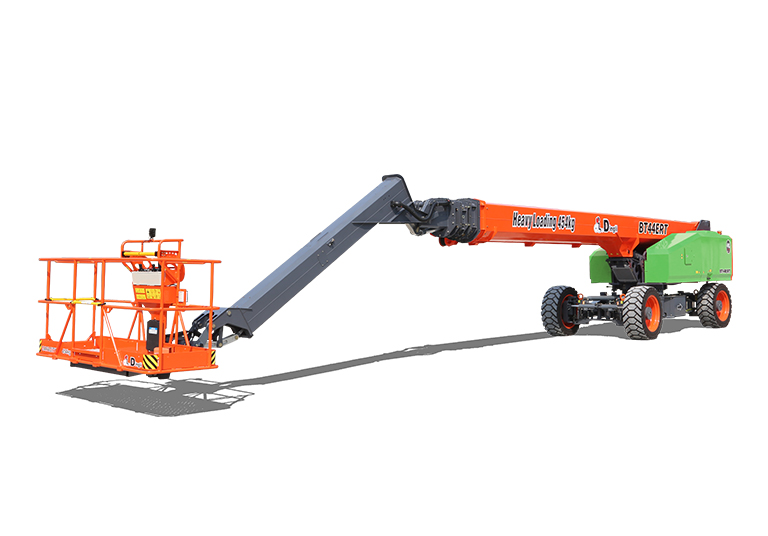

Also available in electric (BT44ERT) and hybrid (BT44HRT) models.
