Dingli Summit SL1623-AWD Scissor Lift

Dingli Summit SL1623-AWD Scissor Lift
Dingli Summit SL1623-AWD Scissor Lift
Dingli Summit SL1623-AWD
Dingli Summit SL1623-AWD

Type:access equipment

Make:dingli

Power:Internal Combustion

Max Height:16 metres

Rough Terrain Scissor Lift

The Summit SL1623-AWD Rough-Terrain Scissor Lift is an extremely versatile lifter that provides a large platform with a 680 kg load limit up to heights of 18 m.

With AC power reaching up to the platform and automatic hydraulic levelling, the Summit SL1623-AWD platform reaches up to 16 m in height, providing up to a 18 m reach. Full of standard features, it comes with a Kubota engine, solid tyres and a selection of optional extras to ensure your SL1623-AWD Rough-Terrain Scissor Lift is tailored to your needs.

Standard Features Can Bus Technology Proportional controls Two self-closing gates 4WD Oscillating axle Slide-out engine tray Tilt protection Tilt alarm Horn Hour meter Safety electric pump Fault indicator on platform Anti-restart engine protection Glow plugs for cold starting Two extendable platforms Flashing beacons European III emission engine Overload sensor Automatic levelling hydraulic outriggers Hydralic oil cooler AC power to the platform Optional Extras Hydraulic generato Hydraulic welder Hydraulic compressor Hydraulic water pump Platform work lights.

Type:access equipment

Make:dingli

Power:Internal Combustion

Max Height:16 metres

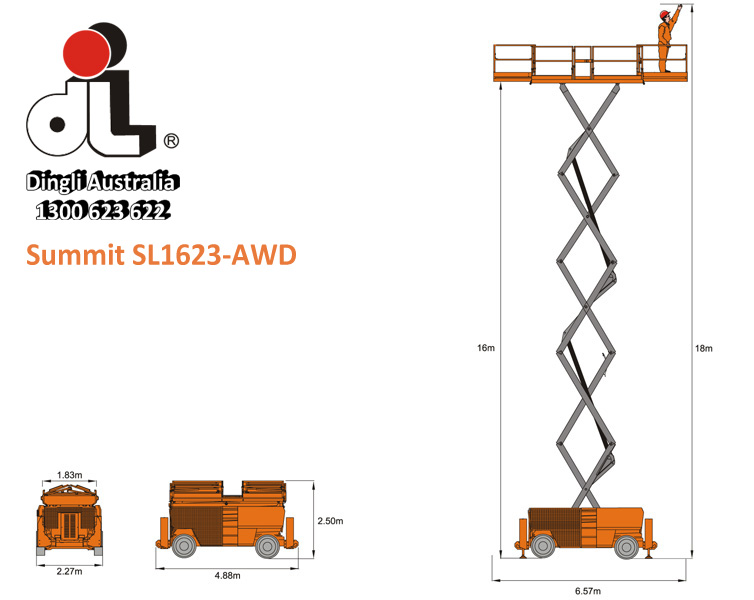

Specifications

Type: Rough Terrain Scissor Lift
Model: SL1623-AWD
S.W.L: 680kg
Working Height: 18.00m
Platform Floor Height: 16.00m
Platform Size: 3.98m x 1.83m
Rotation: 3.98m x 1.83m
Overall Length: 4.88m
Overall Height: 3.19m
Overall Width: 2.27m
Weight: 9190kg

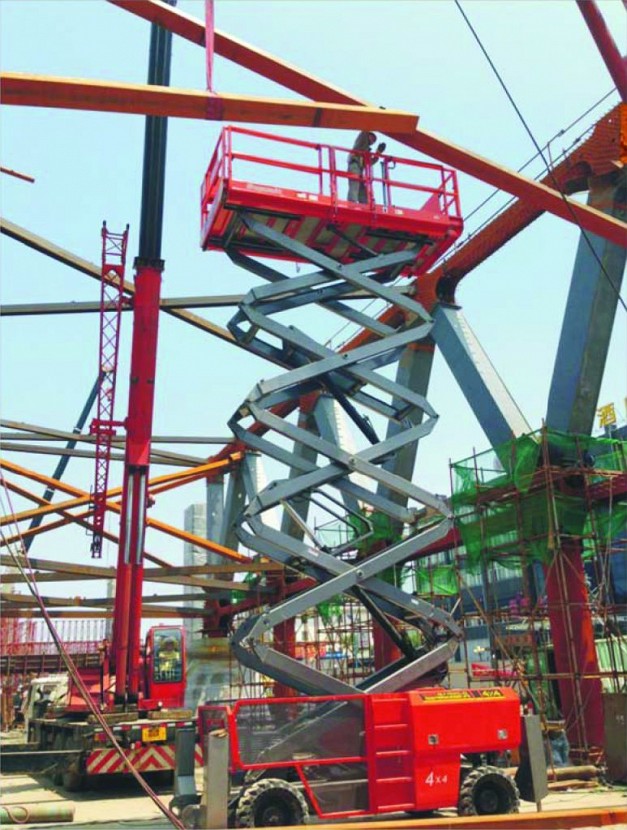

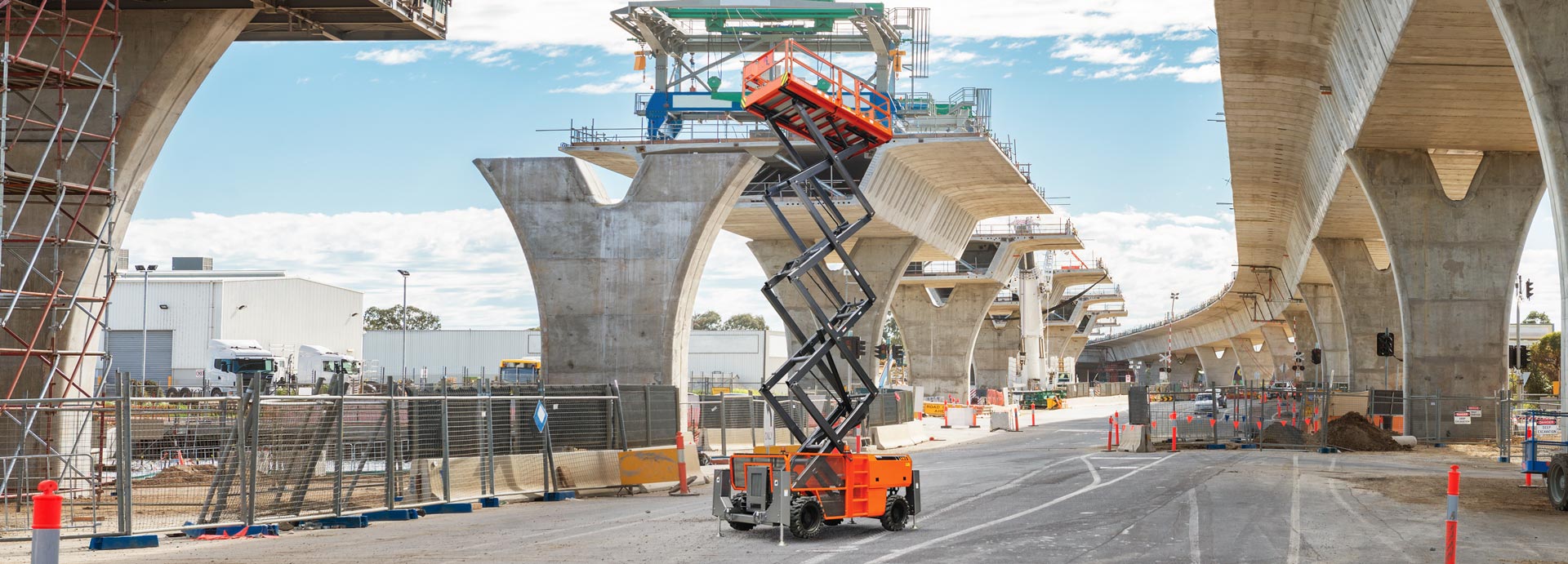

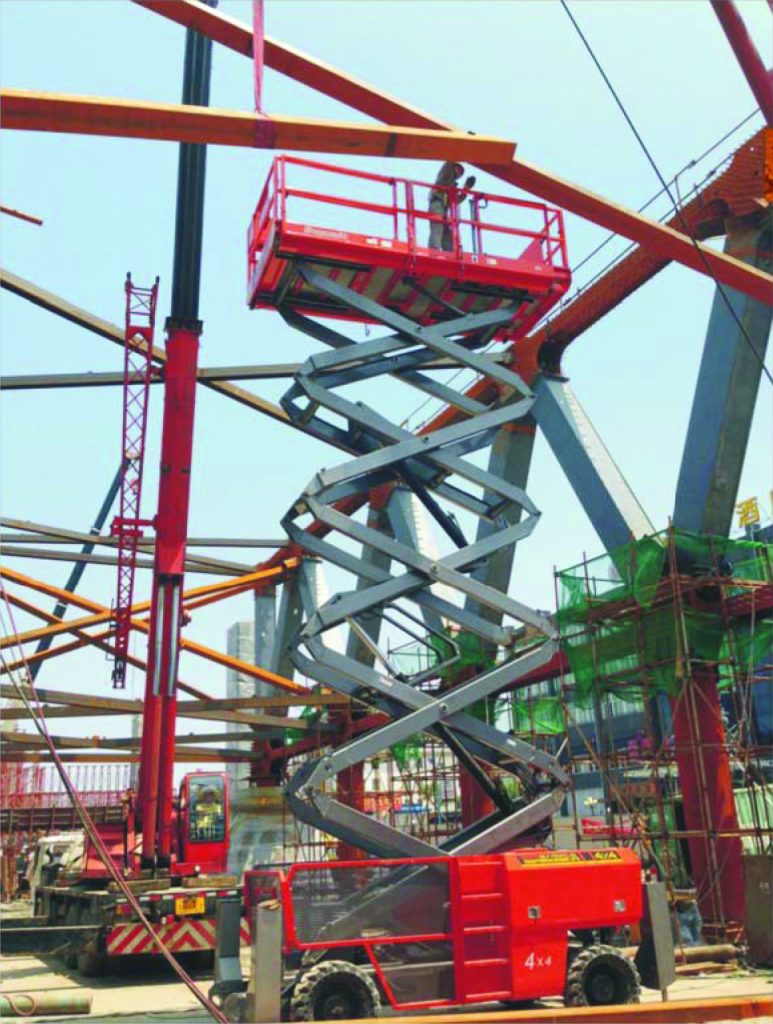

Product Images

Dingli Summit SL1623-AWD Scissor Lift
Dingli Summit SL1623-AWD Scissor Lift
